24-ports unmanaged POE switch
Introduction:

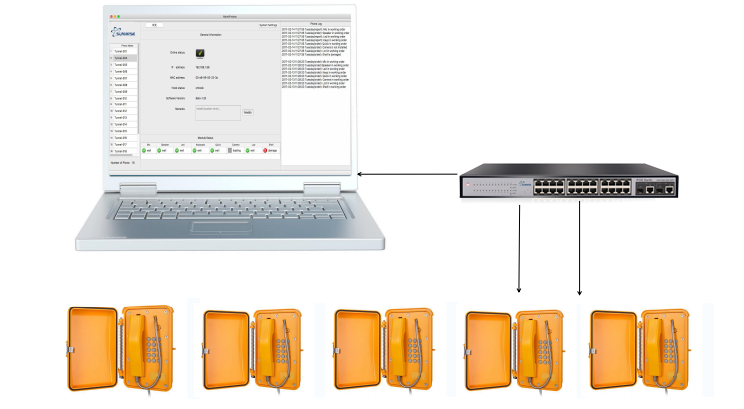

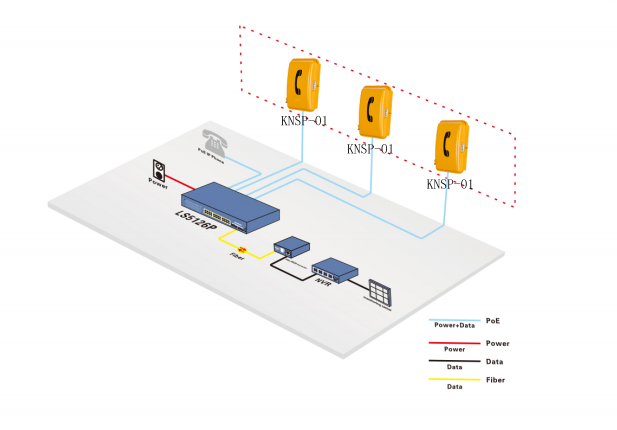

Acorid 24 ports PoE Switches fill the gap between unmanaged and fully mananaged switches. It is designed for growing bussinesses that want control over their network without the cost and complexity of a full Layer2 management implementation.This PoE-capable Switch,provides power and dada using built-in IEEE 802.3af PoE on all 24ports,In addition,LS5126P offers an intutitive Web based management tool fol quick and easy deployment and configuration making t ideal for deploying access points,VoIP phones and IP-based surveillance camera.The max transmission distance is 100 meters with Cat5 cables.Ideally,shorter cable would reduce the power degradation over the cables; with high quality cables also can reduce power loss.Plug & play design make the installation quite easy,users do not need any configuration,which make this PoE switch a very good choice for IP cameras,wireless AP,VoIP users.
Key Features

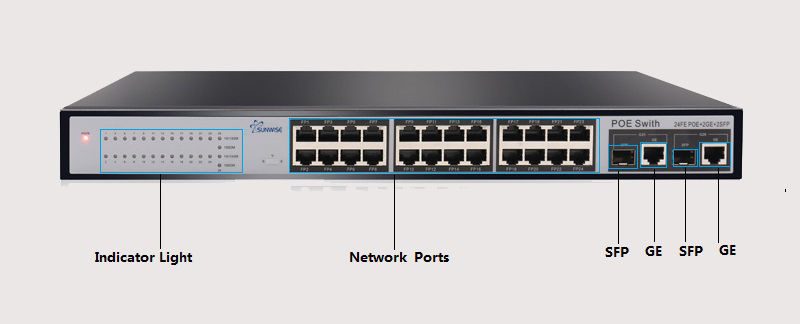

• 24-Port 10/100Mbps + 2 Gigabit Combo port
• Complies with the IEEE 802.3f/at standard
• Each switch port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet) , 1000/2000Mbps (Gigabit Ethernet).
• Support MAC address auto-learning and auto-aging
• Prevents packet loss with back pressure (Half-duplex) and IEEE 802.3x PAUSE frame flow control (Full-duplex)
• High performance Store and Forward architecture, broadcast storm control, runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
•Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
•8.8 Gbps Switching Capacity
•On/Off power switch
Ordering information
SWPB-24 24 ports 10/100M PoE switch with 2 10/100/1000 SFP Fiber ports,250/450W Power budget optional.
SWPB-24 24 ports 10/100M Web-smartPoE switch with 2 10/100/1000SFP Fiber ports,250/450W Power budget optional.
