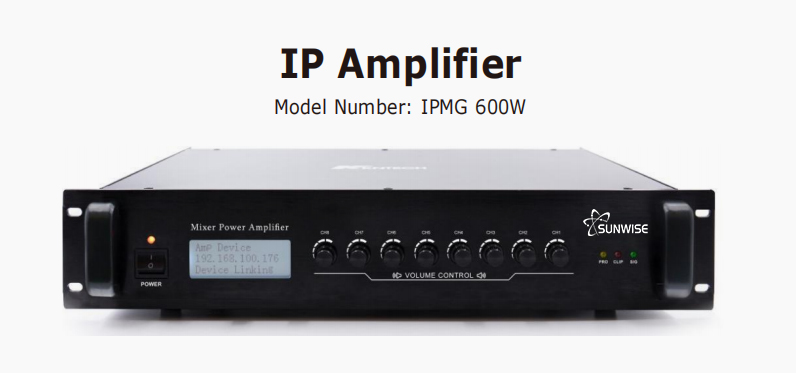

IP Amplifier
This power amplifier unit is an 8-channel IP power amplifier. The output power of each amplifier channel is adjusted according to the connected speaker load, limited only by the overall power budget of the whole amplifier The units is connected to the central exchange unit via Ethernet CAT5 or CAT6 or fiber cable.The amplifier is a Class D power amplifier due to its especially high efficiency, low power consumption and long life.
This network public address system is suitable for tunnels, docks, factories, schools, Hospital,subways and other places where the environment is harsh and noisy.
Function
8-channel power amplifier.
Analog audio lifeline input
IP amplifier Self-diagnosis.
Integrated web interface
Display and function keys at the front of the unit

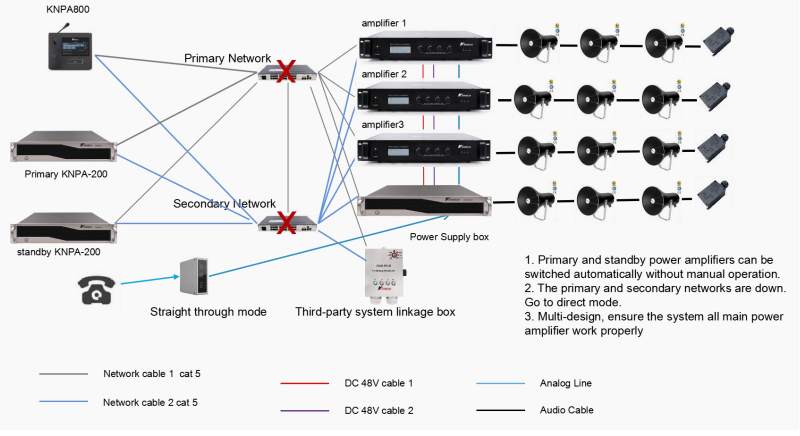

Intelligent N+1 backup control
Integrated loudspeaker loop monitoring
Integrated monitoring functions (short circuit, excess temperature, voltage failure, function monitoring)
Support for output A/B redundant Line
Distortion factor < 0.5% at rated power
Dual port redundancy
Dual power redundancy

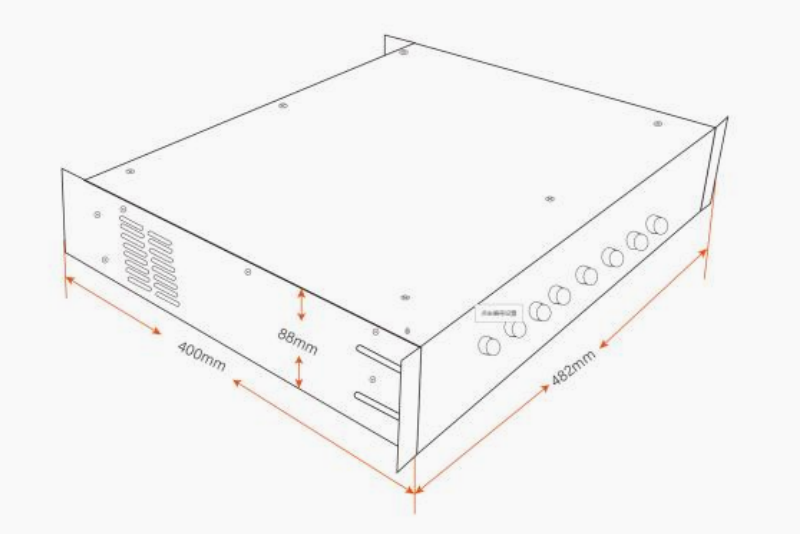

Size display
CERTIFICATION :
