Blue Light Station SWOD-03-D23
DESCRIPTION ITEM
1. Robust aluminium alloy die-cast body, Vandal & tamper-resistant hardware.
2. Waterproof rating IP66 dust proof.

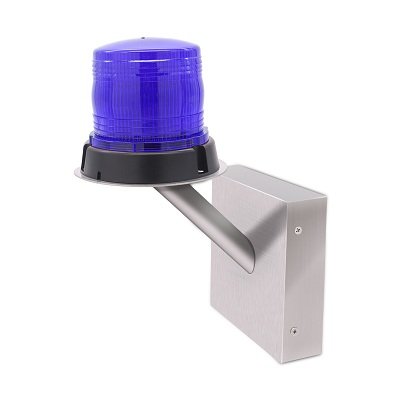

3. With line powered blue indication lamp.
4. Noise canceling microphone. When the train or car comes, the phone automatically filters out the noise of the train, making the quality of the call clearer.Without keypad, support hotline setting. support scroll dialing.
5. Magnetic reed hook-switch.
6. DC input overvoltage overcurrent protection and RJ 45 surge protection.
7. Heavy Duty handset with hearing Aid compatible (HAC) receiver,
8. Handset with industrial strong curly cord .
9. Door cover: orient automatically and good self - closing, convenient for use.
10. Temperature range from -40 degree to +70 degree.
11. Support echo cancellation.
12. Support Remote software upgrade, configuration and monitoring.
13. Powder coated in UV stabilized polyester finish.
14. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.
INSTALLATION
Order information:
Model number Power Suppl Item Number
SWOD-03-D23-IP-Y_AD DC12V 1A OD0030052
SWOD-03-D23 -IP-Y_P POE OD0030022
SWOD-03-D23 -IP-Y_ADP DC12V 1A +POE OD0030092
*AD---Adapter UL (Input : AC110~240V , Output : DC12V 1A)
*P---POE
CERTIFICATI
Australian communications:AS/CA S004
Australian Equipment-safety: AS/NZS 60950.1:2015
RCM: AS/NZS CISPR 32
EMC:EN55032, EN55024,EN61000-3-2

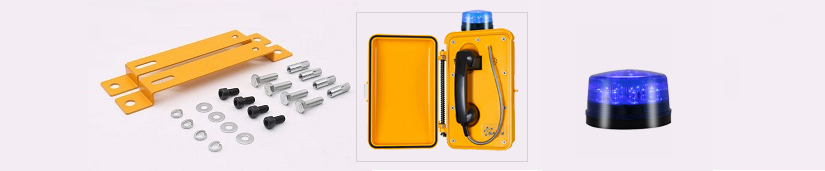

PACKAGING

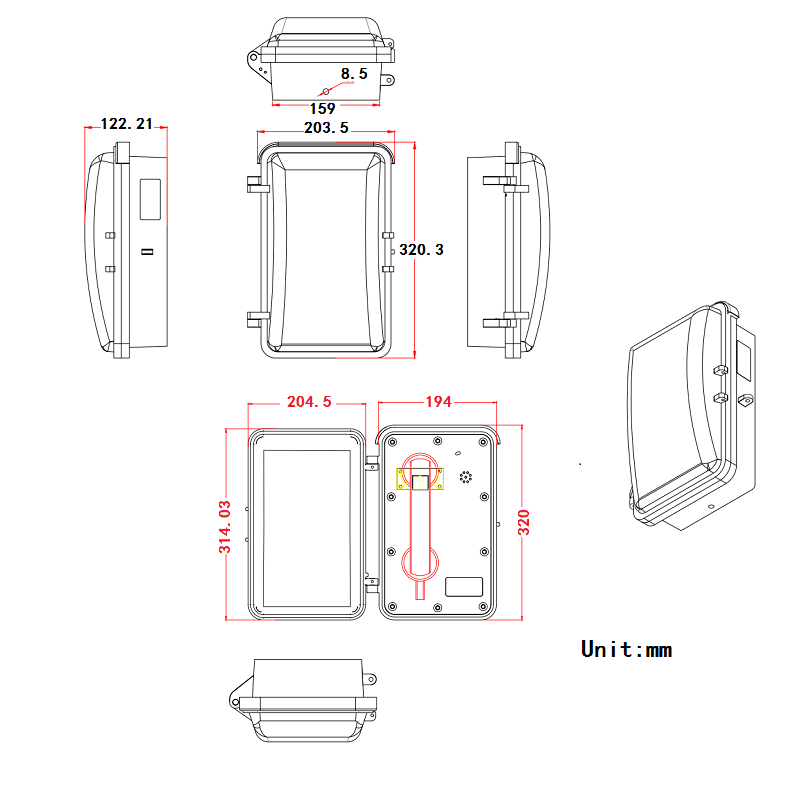

Unit size:320 *205*120mm Unit: N.W:4.86KG
1pcs packing box size: 439 *277 *191mm Unit N.W:5.8KG
6pcs in 1 outer Carton box: size: 730*390*340mm N.W:36.5KG
