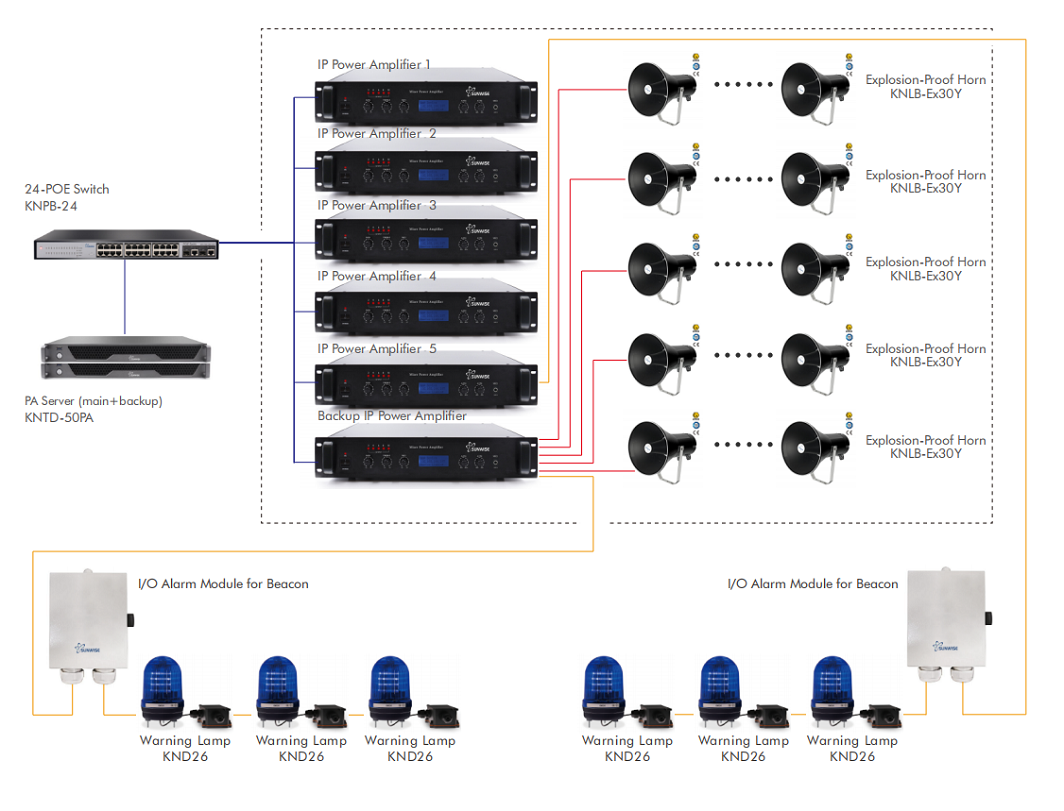

All the beacon feeded power from IPIOBOX1. no need local power feed. Line for beacon only with out speaker.
There is a Connector box connection between the speaker and the alarm lamp.
The alarm light flashes when the speaker is broadcasting.
When the speaker is on standby, the alarm light is standby too.
Each alarm light requires no local power supply. Each light centralized power feeding.
Each alarm light requires a terminal box for wire connection.
Connector terminal box in waterproof grade IP66.
Flash light IP66.
Remarks: Audio signal cable 100V standard 2-core speaker wire
