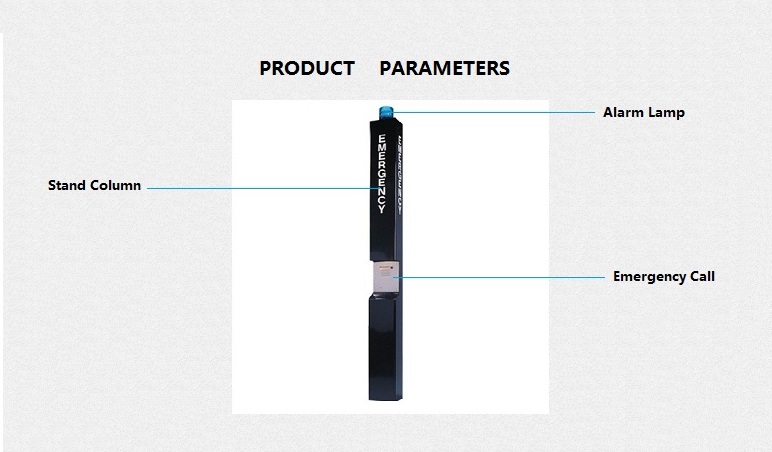

Emergency Phone Tower SWEM-28
Main Features:
+Standard and SMART Analogue and VoIP-SIP/ GSM options available l DTMF(Dual Tone Multi Frequency)
+Matching with most PABX,PBX and PAX systems.
1． Main body with whole metal body, solid and temperature bearable
2． Handset free, build-in loudspeaker,
3． Resume lightning proof protection automatically standard to ITU-T K21
4． Waterproof grade about IP55
5． The metal shell is provided with grounding connection device and is absolutely insulated with inner circuit and electric ,then has the effect of electromagnetism shield.
6． Support hotline call, can realize ring off automatically if the other side close.
7． Totally adopt SMTC craftwork keep very good quality.
8. KNEM-28 The design is super thin and smart. Embed style and hanging style can be chosen.
9． Every call is limited(set by five minutes),auto ring off if time exceeded. (Optional)
10．The telephone has passed the certificate of ISO9000(2000)
11．Built-in CCTV camera will open/close automatically when telephone on/OFF.
12．Blue light automatically open and /close when there’s a phone call coming.
VOICE OVER IP – SIP
Connection type: RJ45 Socket inside sealed enclosure
Power suplly: External 24V dc
Call set-up Protocol: Session Initiation Protocol(SIP)
Configuration: DHCP or Static IP address provisioning
Main technical indexes：
1、 Applicable for various types of SPC exchange and dispatching exchange system with feeding voltage of 48-69V.
2、 Ambient temperature:-30℃~60℃ Relative humidity:10%~95%
Atmospheric pressure: 86~106Kpa Circumstance noise:≤ 60dB（A）
3、 Sound level of ringing：≥70dB（A）. 1W speaker
4、 Standard frequency：low frequency group：697、770、852、941Hz,high frequency group：1209、1336、1477Hz, frequency deviation：≤±1.5% If service line is a 3Km signal－level：
Standard frequency：low frequency group：-9dB±3dB，high frequency group：- 7dB±3dB，level difference between low and high frequency of compound signal：2±1dB，the total distortion caused by intermodulation of harmonic wave is lower than the basic level by at least 20dB.
5、 Call transmission index：(5KM)SLR≤12,RLR≤-1,STMR≥10, output impedance is 600Ω.
6、 Super strong function is available for dialing 12 groups of numbers stored in the memory （maximum length of each number is16 digits）
Certification:
EMC: EN50121 (Railway application- Electromagnetic Compatibility)
EN55022: emissions
EN55024: immunity
Ingress Protection: GB4208-93 IP66
FCC
ITU-T Recommendations K21
