Standard:
IEEE 802.3 is suitable for 10BaseT IEEE 802.3u is suitable for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z is suitable for 1000BaseX
IEEE 802.3x is suitable for traffic control IEEE 802.1d-2004 is applicable to the Spanning Tree Protocol
IEEE 802.1w is suitable for Rapid STP IEEE 802.1q is suitable for VLAN Tagging
IEEE 802.1p applies to Class of Service IEEE 802.1x is applicable to Authentication
IEEE 802.3 AD is suitable for Port Trunk with LACP
Protocol:
IGMPv1 / v2, v3 and GMRP GVRP, SNMPv1 / v2c/v3, DHCP Client, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, SSH, LLDP, IEEE 1588 PTP V2, IPv6.
MIB:
Mib-ii, Ethernet Like MIB, p-bridge MIB, Q-bridge MIB, BRIDGE MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 Flow control: IEEE 802.3x flow control, back pressure flow control
Switch Properties:
Priority queue: 4
Maximum number of available VLANs: 64
VLAN ID range: VID 1~4094
IGMP snopping multicast group: 256
MAC address table size: 8K
Packet buffer size: 1 Mbit

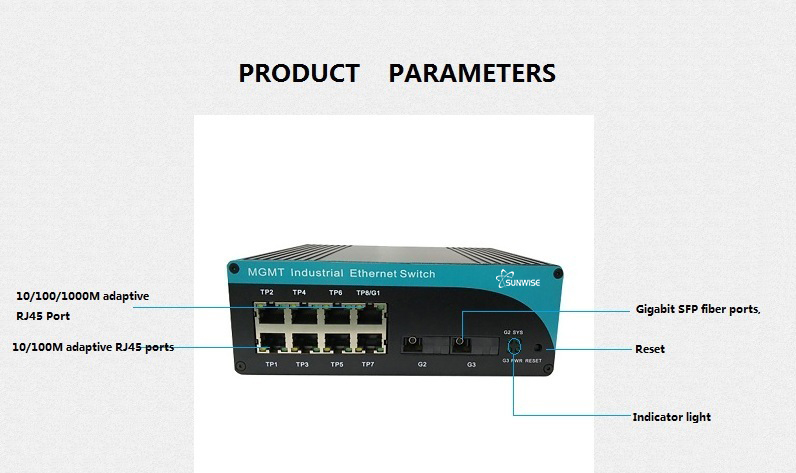

interface:
Fiber port: 1000BaseX SC (can be used as FC ST SFP-LC interface)
RJ45 port: 10/100BaseTX or 10/100/1000BaseTX adaptive
Console port: Based on the serial port global network management RS-232 (RJ45 connector)
Button: Reset restart button Reset Alarm output: 1 relay output, current load capacity 2 A
Power input: 2 inputs, electronic isolation, common ground
Input voltage: 12VDC (5 ~ 55VDC), dual redundant input
Terminal block: 6 core 5mm spacing terminals
No-load power: 3.0W@12VDC
Full load power: <0.76A@12VDC, <10w
Support overload protection
Support reverse connection protection
Support redundancy protection
LED:
The LED indicators of industrial Gigabit ring fiber switches show the working status of the switch. According to the LED, it can be judged whether the switch is working properly and may have any problems, thus helping to find out the fault.
Industrial Gigabit ring network switch indicators are all defined as follows:
Size and working temperature
Shell: IP40 protection grade, high-strength aluminum profile or iron shell installation: rail, wall mount Bench
weight: 800g
Dimensions (W × H × D): 170 mm × 127 mm × 60 mm
Operating temperature:
Standard model: -25 ~ +60 °C
Wide temperature model: -40 ~ +85 °C
Storage temperature: -40~85°C
Relative humidity: 5%~95% (no condensation)
Reset and restore factory settings:
Press the RESET button, the device will restart, and the factory reset can be done at the WEB interface. You can also complete the relevant commands through the CON port.

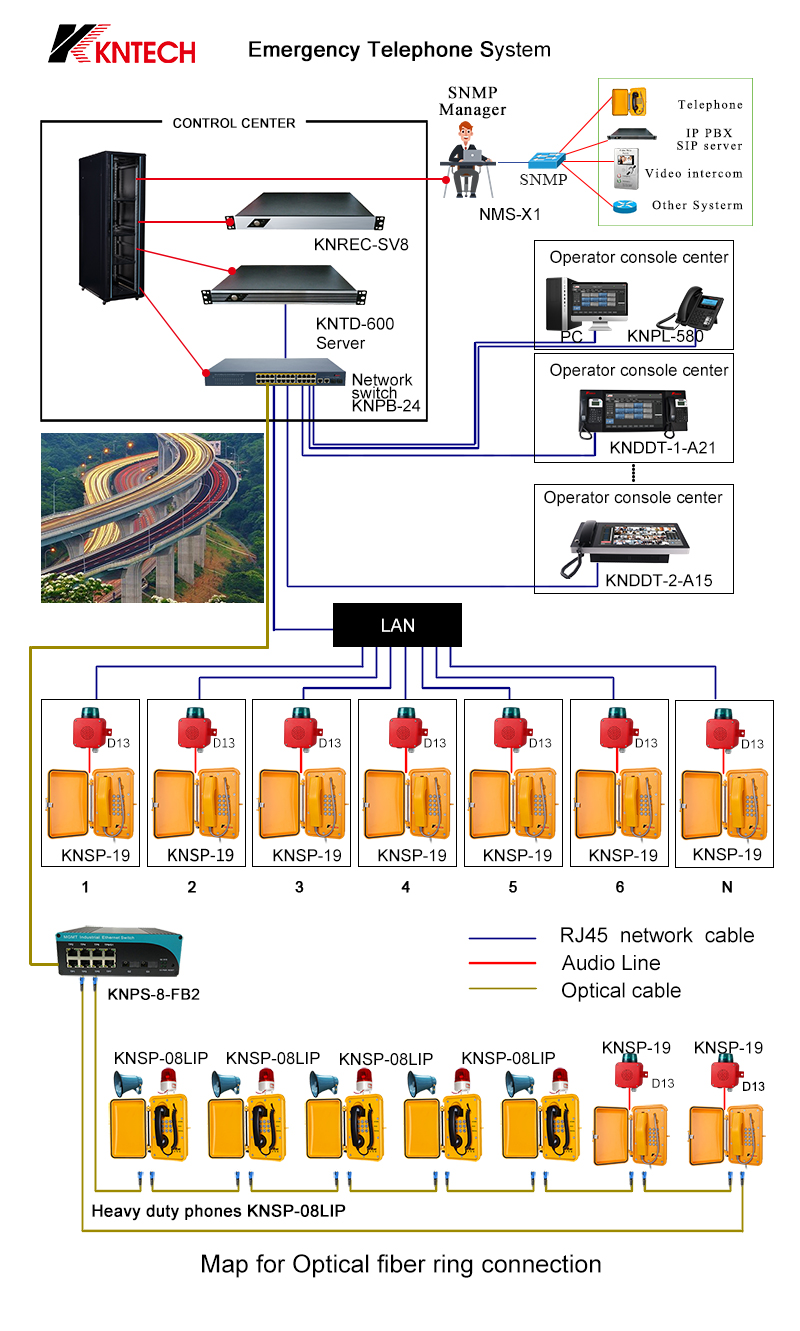

Ring network and more related settings
1.Login System Default IP: 192.168.0.253 Username : superuser Password: 123
2. ring network configuration: In the system properties (the device has been set to fast-breaking RSTP, the user can set up the ring network directly and can also make other corresponding changes according to the needs)
3 IP configuration To facilitate management, you can modify the IP address, and each device must be in the same IP address segment.
