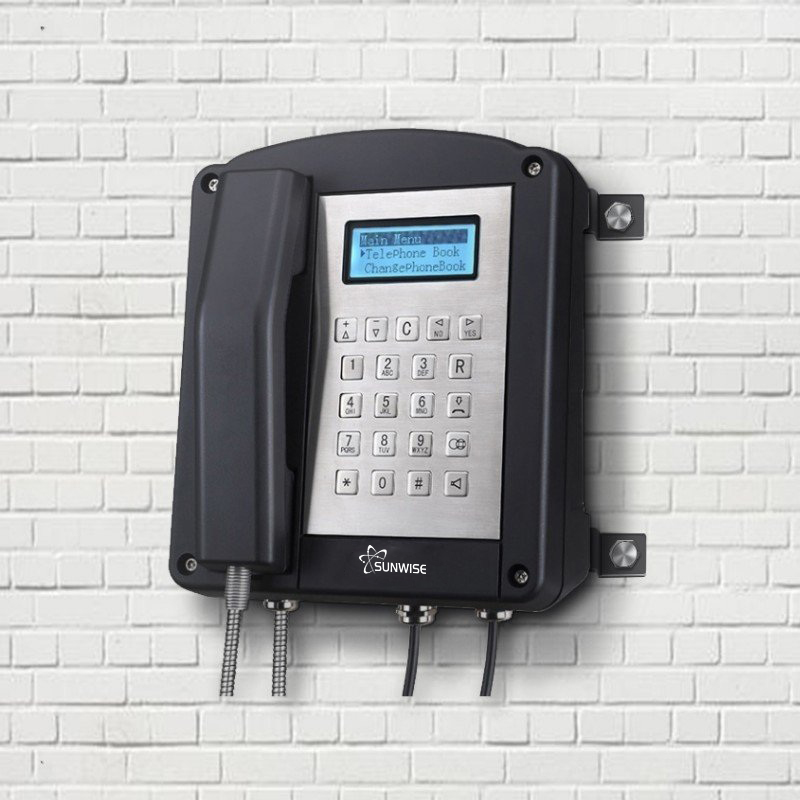

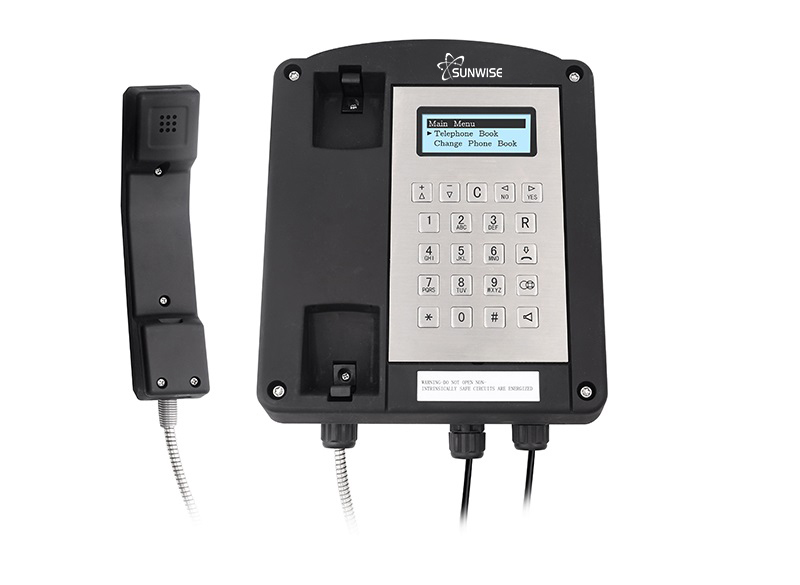

ATEX Telephone KNEx1

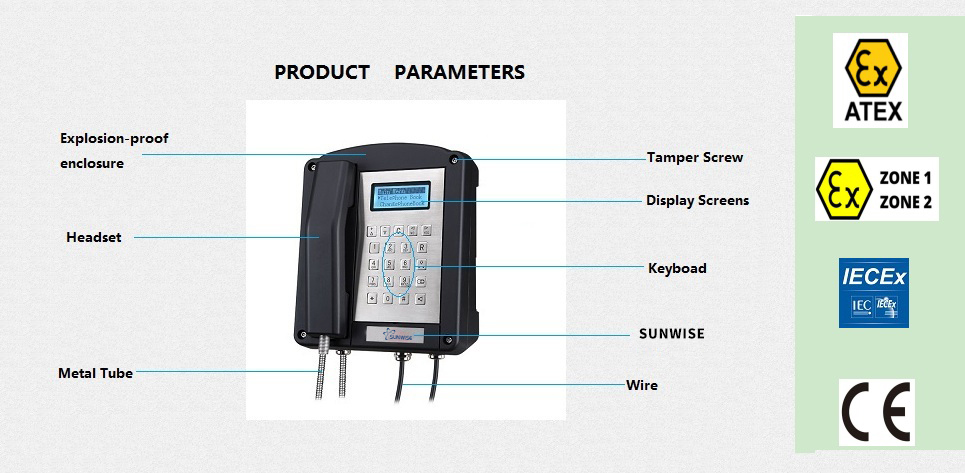

Telephone Description
1. Robust SMC 2600 glassfibre reinforced polyester die-cast body.
2. IECEx certified, Type Exe ib mb I IC T6 Gb.
3. Waterproof degree IP66, High temperature approval -30℃ to +70℃.
4. Analogue telephone matching with most PABX, PBX and PAX system.
5. Telephone line powered. No external power or battery required.
6. LCD display include, SUS Metal keypad 24digit, Magnetic reed hook-switch.
7. Busy tone detection for auto release the line if line busy, Auto answer auto release line.
8. Ring sound 95 dB dfd in 1 m and 10 ringing tone melodies selectable.
9. Listening by loudspeaker: 70dB in 1m.
10. Phone book memory: 50 address ( name & number) programmable.
11. Full Soft lock: only dial out from phone book 50 memory address number.
12. Half soft lock: limit to dial out starting number, e.g.“00852” area code.
13. Dry contact for external control automation (Option).
Telephon Manual Setting
Welcome text programmable e.g: welcome to koontech telephone.
Full soft lock or half soft lock.
Ring speaker up to 4 level selectable.
Hands free talking sound up to 4 level selectable.
Handset receiver sound up to 4 level selectable.
Up to 9 Ring tone melodies selectable.
Back light up to 4 level selectable.
The dialing number.
Calling time counting.

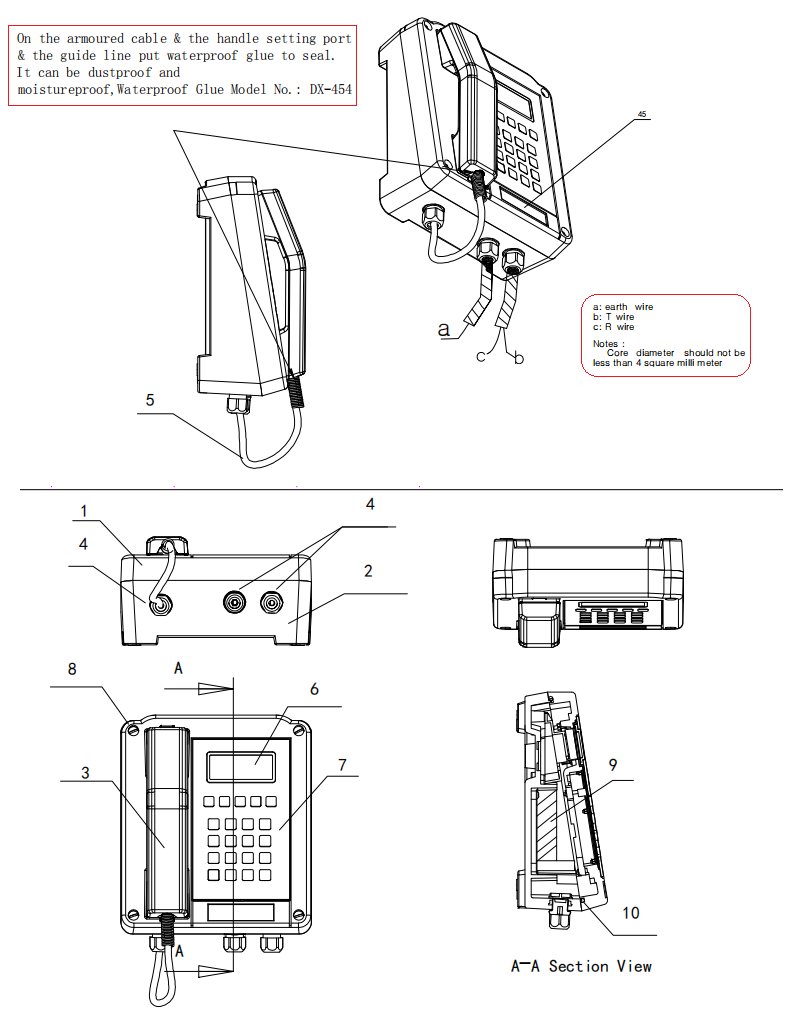

INSTALLATION
Telephon

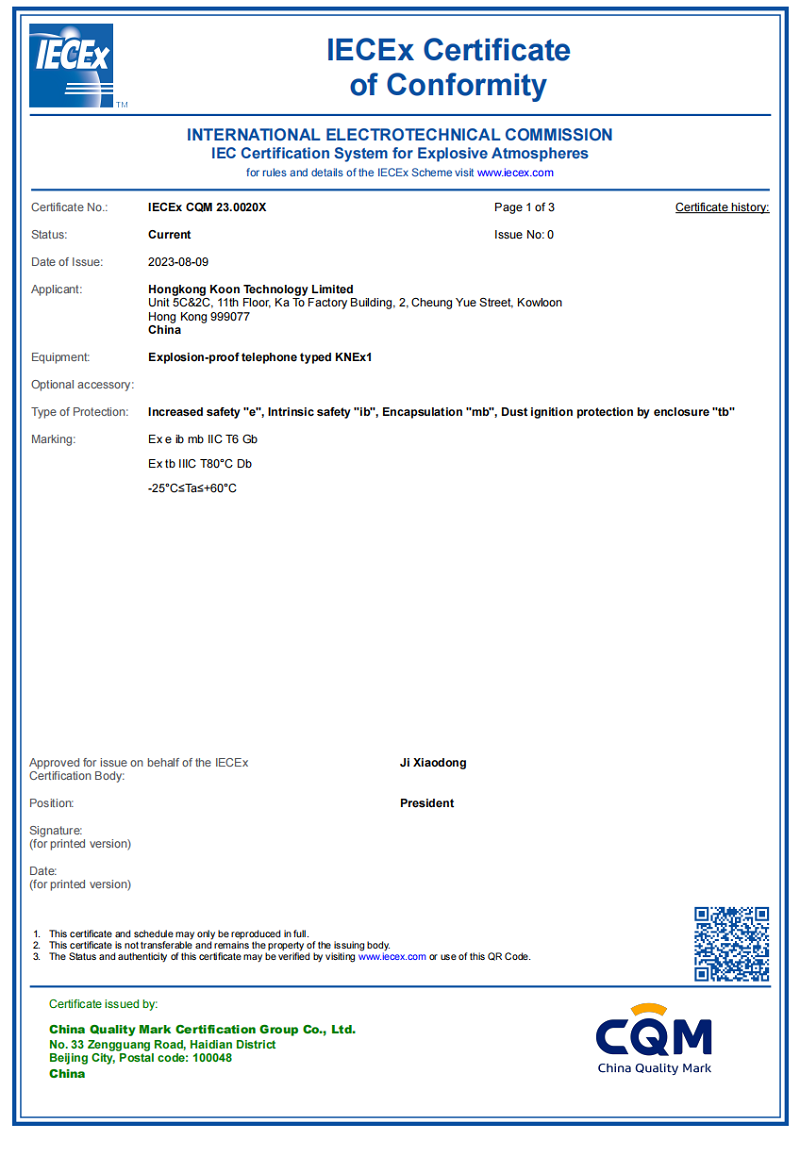

CERTIFICATE
PACKING
Unit size: 234*280*115mm NW: 5.8KG
1pcs packing box size: 439 *277 *191mm N.W: 5.8KG G.W: 6.8KG
4pcs in 1 outer Carton box size: 55*50*38cm N.W: 23.4KG G.W: 27.2KG
