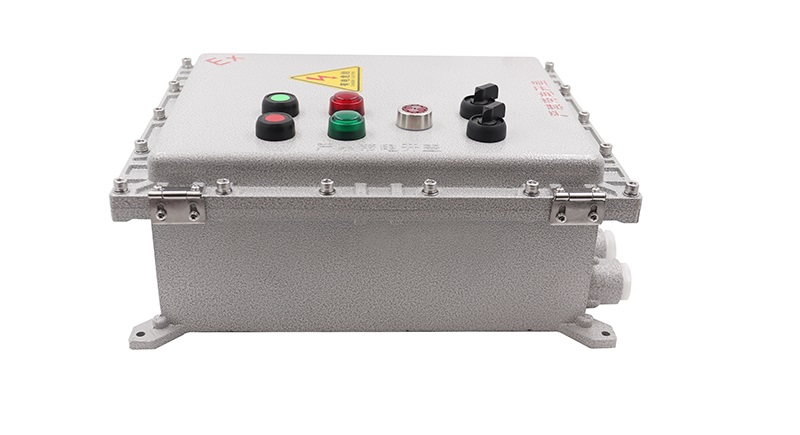

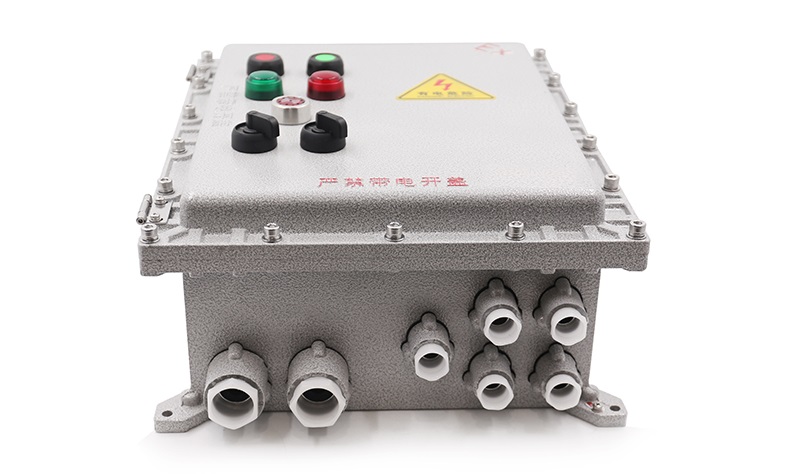

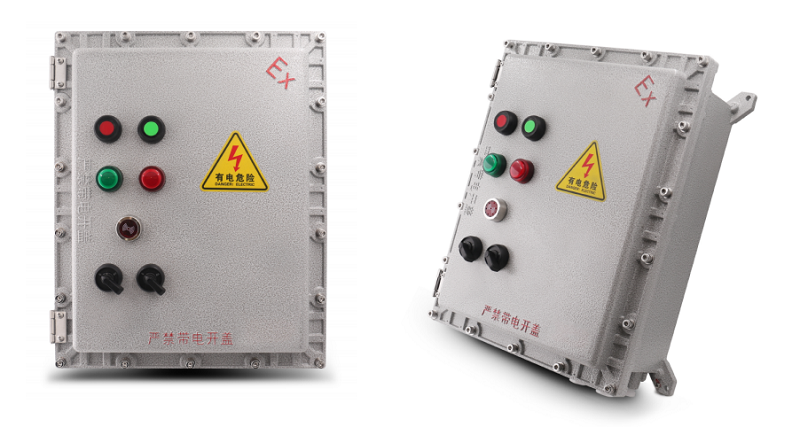

Cast aluminum explosion-proof control box
Fully functional with a wide range of control
Control fan
Control motor
Control welding machine
Control belt conveyor
Control water pump
Control lighting fixtures
Aluminum alloy protective shell
With a thickness of over 5mm and outdoor plastic powder used, the explosion-proof effect is guaranteed without frequent replacement, and the service life is long, reducing maintenance costs

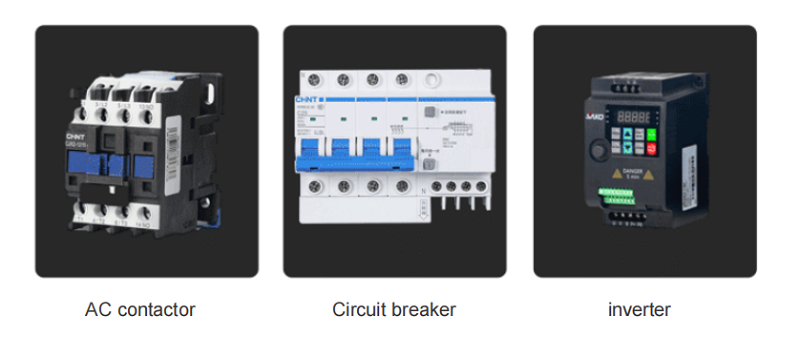

Equipped with a detachable installation board, electronic components can be installed at will. The circuit is clear and convenient for later maintenance and repair.
Various brands of electronic components can be installed at will. If you have special requirements, please contact customer service for consultation!
Installation and maintenance
1.Cut off the previous power supply before installation and maintenance.
2.The incoming and outgoing cables pass through rubber sealing rings and are sealed with gaskets and compression.
3.During maintenance and disassembly, be careful not to bump or scratch the anti glare surface, and apply 204-1 anti rust oil.
4.The distribution box should be regularly inspected during use, and non professionals are strictly prohibited from opening the cover for installation and maintenance.
Scope of use
1.Used in hazardous areas in Zone 1 and Zone 2.
2.Used in explosive gas environments such as LA, IB, and IC.
3.Used in T1-T6 environments.
4.Suitable for combustible dust environments in zones 20/21/22

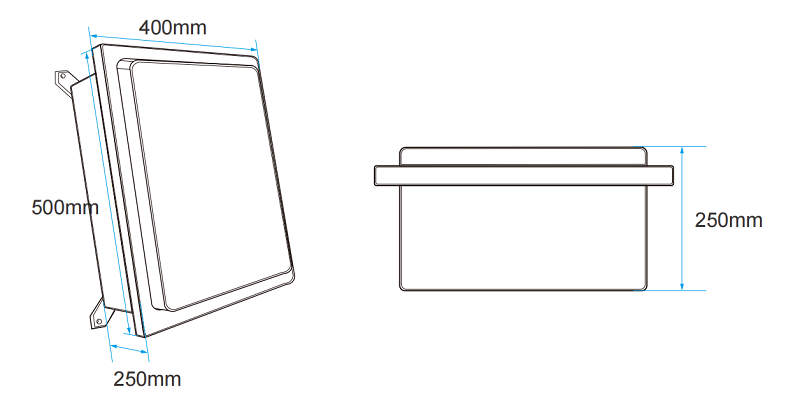

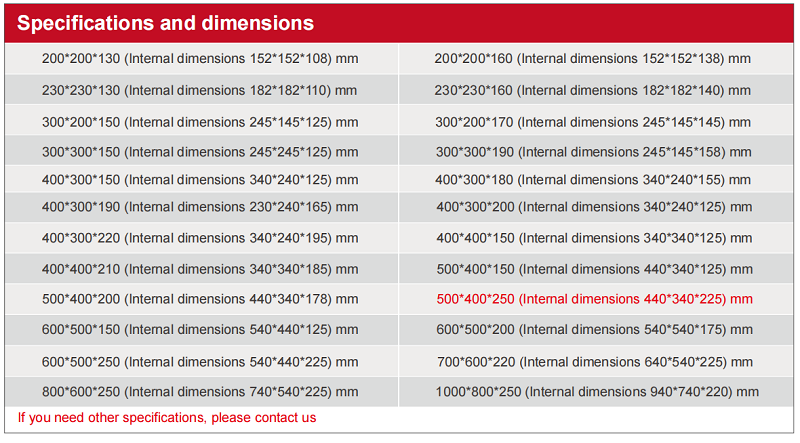

Dimension
