Fiber Transceiver Overvie
STC-911S20 10/100/1000Mbps Adaptive Gigabit Ethernet fiber converter using switching technology for media conversion，which meets the standards of IEEE802.3、IEEE802.3u、IEEE802.3z、IEEE802.3ab，It can conduct mutual conversion between 10Base-T/100Base-TX/1000Base-T twisted pair electrical signal and 1000Base-SX/LX optical signals.
It extends the transmission distance of a network from 100m over copper wires to 120Km。This fiber converter supports transmission in dual-fiber multi-mode、dual-fiber single-mode and single-fiber single-mode fibers.
Fiber Transceiver Feature
*Supporting mutual signal conversion between 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX;
*Supporting full-duplex and half-duplex transmission modes and capable of automatic negotiation
*Supporting automatic cross of twisted pair ports, for the convenience of system debugging and installation;
*Supporting the transmission of extra-long packets over VLAN;
*Supporting Quality of Service (QoS) and ensuring transmission of VoIP packets;
*Supporting multiple types of fiber ports such as dual-fiber multi-mode、dual-fiber single-mode and single-fiber single-mode, to satisfy the extended requirements of users.
*Support ZTE ZTE SFP-GE-S10K optical module docking

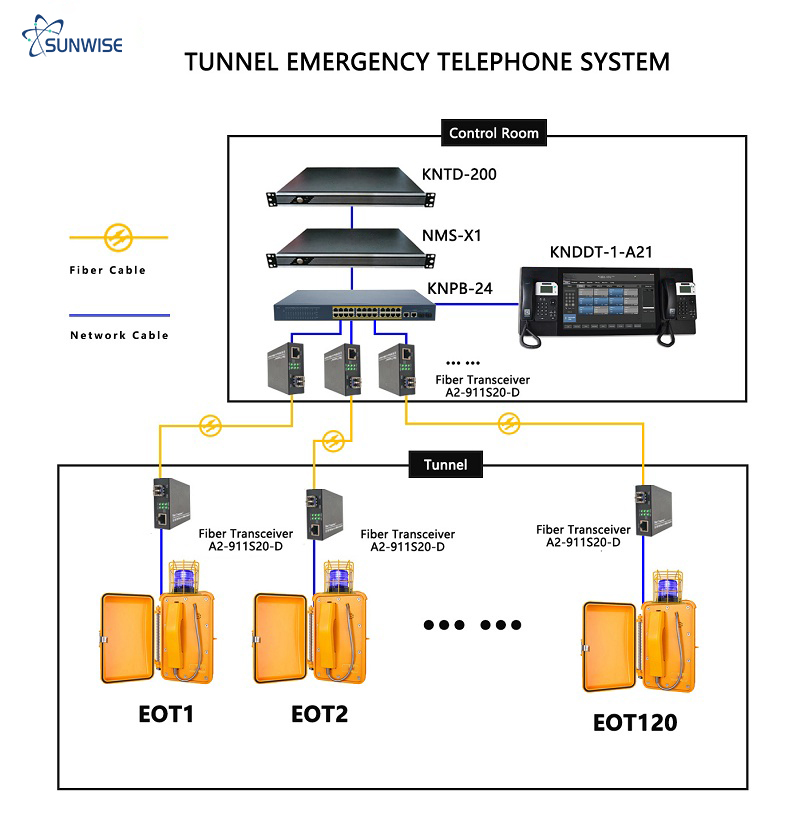

Application
10/100/1000Mbps Gigabit Optical Ethernet network with long-distance transmission
