Heavy Duty Telephone

Model: SWOD-09T2S

Size: 320*205*73mm

Material: Aluminum alloy

Features
Specification
System
Application
Detailed Pictures
Video
Email US

Features

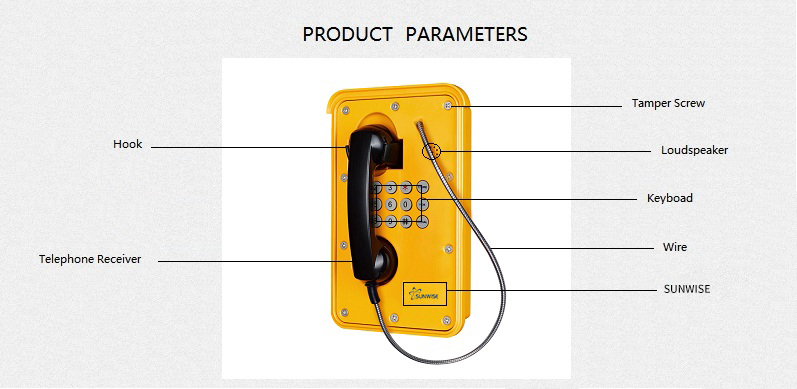

heavy duty telephone describe

Heavy Huty Telephone SWOD-09T2S

DESCRIPTION ITEM

1. Robust aluminium alloy die-cast body, Vandal & tamper-resistant hardware, easy Installation.

2. Waterproof rating IP66 dust proof.

3. Full keypad with memory, 10 button programmable speed-dial telephone.

4. Door cover: orient automatically and good self - closing, convenient for use.

5. Weather resistant to IP66 standard, service temperature range from -30 degree to +75 degree.

6. Magnetic reed hook-switch.

7. Lightening protection to ITU-T recommendation K.21.

8. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.

9. Handset with industrial strong curly cord .

10. Silicon keypad keep waterproof and dusty proof.

11. Phone integrity wiring to enable the telephone system to check if the telephone unit is still.

Operational.(if PABX have this available we can provide this function).

12. Optional 7 minute time out to release the line if the handset is left off hook. This function upon buyer’s requirement.

13. Powder coated in UV stabilized polyester finish.

14. The housing covered with a layer of reflective label for easy identification at night.Optional

15. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.

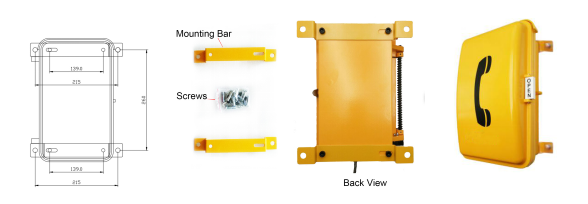

INSTALLATION SIZE

weatherproof telephone Exterior

CERTIFICATION

Weatherproof telephone certificate

RCM: AS/NZS CISPR 32 Australian communications:AS/CA S004

Australian Equipment-safety: AS/NZS 60950.1:2015

EMC: EN50121(Railway application-Electromagnetic Compatibility)

PACKAGING

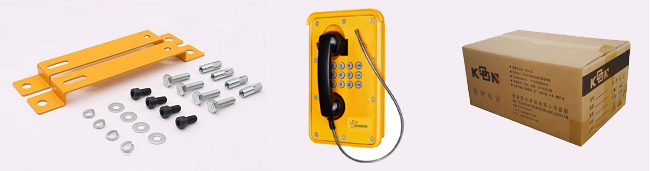

the wall mounted telephone parts

Unit size:320 *205*120mm Unit: N.W:3.4KG

1pcs packing box size: 439 *277 *191mm Unit N.W:4.5KG

6pcs in 1 outer Carton box: size: 730*390*340mm N.W:29KG

Specification

SPECIFICATION - Analogue(Model NO.SP0090012)

1. PSTN analogue telephone 2. DTMF dialing

3. MTBF:100000hours 4. MTTR: 2 hours

5. Connection: RJ11 screw terminal pair cable 6. Sound level of ringing:over 70dB(A).

7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM

8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.

9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected

10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits)

11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%

12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)

SPECIFICATION - VoIP(Model NO.SP0180022)

1. VoIP SIP2.0 telephone 2. DTMF dialing

3. MTBF100000hours 4. MTTR: 2 hours

5. Auxiliary Contacts:1 Aux Output, dry contact 6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC

7. Contact Ratings. Load: Resistive load 8. Echo cancellation code:G.167/G.168

9. Rated carry current:1A 10. Max.switching current:1A

11. Max.switching voltage:125 VAC,60VDC 12. Audio Codes:G.711, G.722, G.729

13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP

14. Free dial (maximum length of each number is 16 digits)

15. Communication: Full duplex 2-way hands-free communication

16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)

17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better

18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W

19. Programming:Non-volatile flash memory programming and configuration through Web GUI

20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED

21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)

System

Application

Detailed Pictures

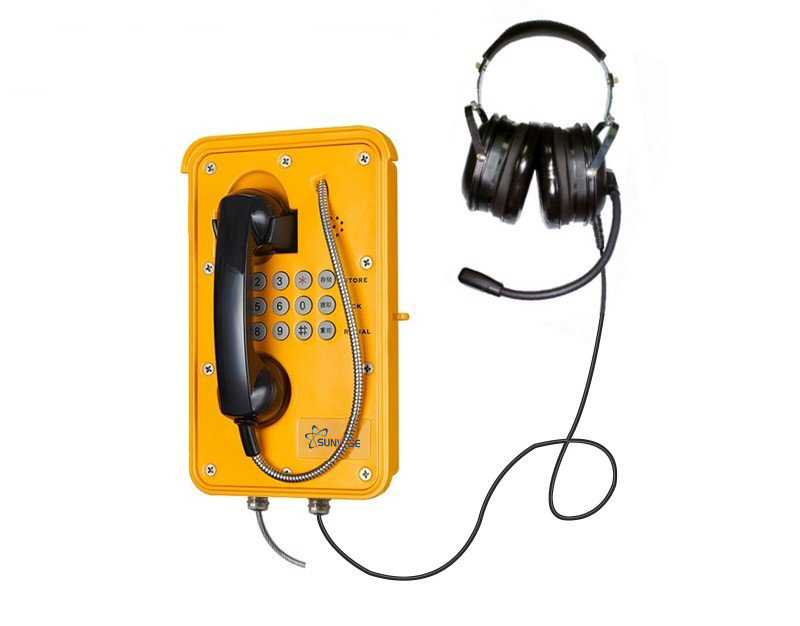

Wall mounted telephone handset

Video

Email US

EMAIL: marketing@sunwisegloble.com

This Product Model: SWOD-09T2S
