Inmate Telephone

Model: SWID-027LCD

Size: 280*210*60(mm)

Material:

Features
Specification
System
Application
Detailed Pictures
Video
Email US

Features

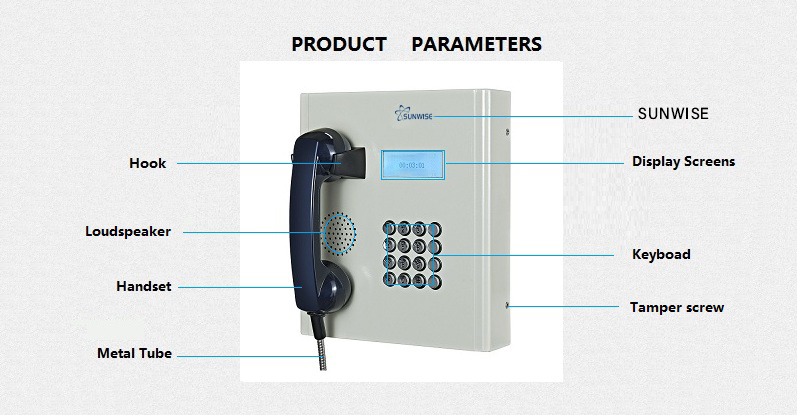

Inmate Telephone Description

Inmate Telephone SWID-027LCD

Main Product features

1.Cold rolled steel body,solid and temperature bearable.

2.High durability,oil,acid,alkali resistance,conform to the standards of GJB-773 and UL1332 requirments.

3.Highly integrated mainboard, using the most advanced industry-specific microcontroller made in ATMEL company.

4.The box with earting device is completely isolated with internal electric circuit,and has certain electromagnetic shielding effect.

5.Concersation with clear loud voice,no feedback screaming.

6.Support hotline of exchange system.

7.Support the function of exterior line automatic lift

8.Support conversation time limted.

9.Strong,thick and beautiful body with embed wall design.

10.Support LED.

Main PCB

1.Well treated PCB used inside the phone.

2.Robust screw terminals used for the connection of ringer,handset,line in,hookswicth.

3.Selectable 7 minute time out,to relese the line if the handset is left off hook.

4.All connectors be greased in production.

INSTALLED:

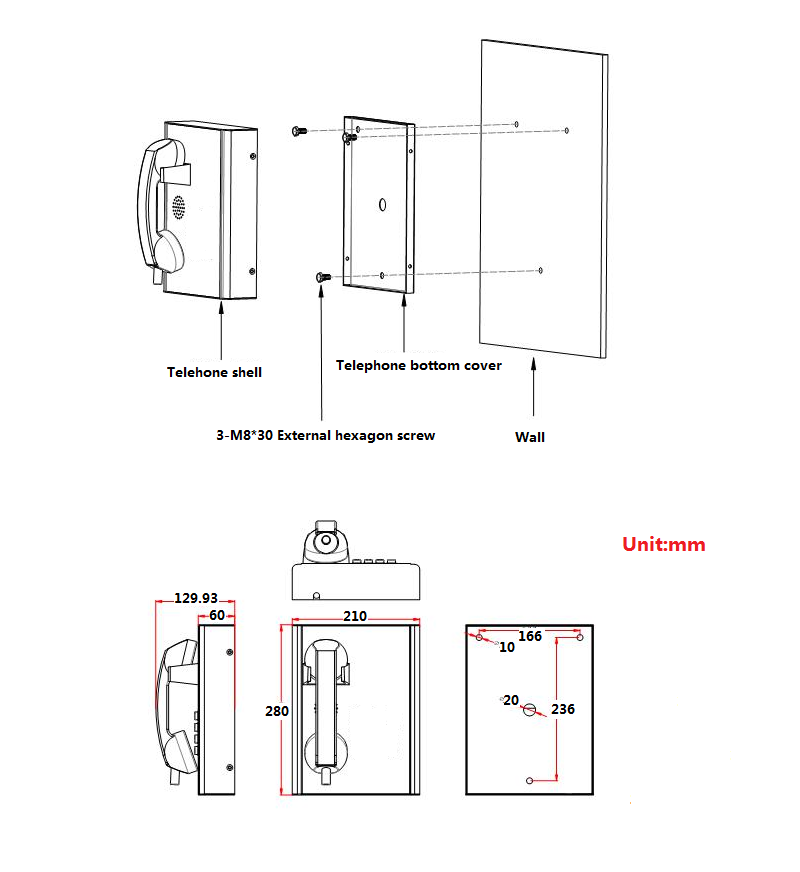

emergency ip telephone size

CERTIFICATION

Weatherproof telephone certificate

EN55022: emissions EN55024: immunity

Ingress Protection: GB4208-93 IP66 FCC ITU-T Recommendations K21

EMC: EN50121(Railway application-Electromagnetic Compatibility)

PACKAGING

Unit size:280*210*60mm Unit: N.W:2.6KG

1pcs packing box size: 330*250*170mm Unit: N.W:2.6KG Unit G.W:3KG

6pcs in 1 outer Carton box: size: 730*390*340mm N.W:31.8KG G.W:34KG

Specification

SPECIFICATION - Analogue

1. PSTN analogue telephone

2. DTMF dialing

3. MTBF:100000hours

4. MTTR: 2 hours

5. Connection: RJ11 screw terminal pair cable

6. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.

7. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)

8. Sound level of ringing:over 70dB(A).

9. Standard frequency:low frequency group:697. 770. 852. 941Hz, high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5% 10.Call transmission index:(5KM)SLR<12,RLR<-1,stmr>

10, output impedance is 600 Ohm. maximum distance: 7KM

11.Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request) with stainless.

SPECIFICATION - VoIP

1. VoIP SIP2.0 telephone 2. DTMF dialing

3. MTBF100000hours 4. MTTR: 2 hours

5. Auxiliary Contacts:1 Aux Output, dry contact 6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC

7. Contact Ratings. Load: Resistive load 8. Echo cancellation code:G.167/G.168

9. Rated carry current:1A 10. Max.switching current:1A

11. Max.switching voltage:125 VAC,60VDC 12. Audio Codes:G.711, G.722, G.729

13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP

14. Free dial (maximum length of each number is 16 digits)

15. Communication: Full duplex 2-way hands-free communication

16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)

17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better

18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W

19. Programming:Non-volatile flash memory programming and configuration through Web GUI

20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED

21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004).

System

Application

Detailed Pictures

inmate telephone view

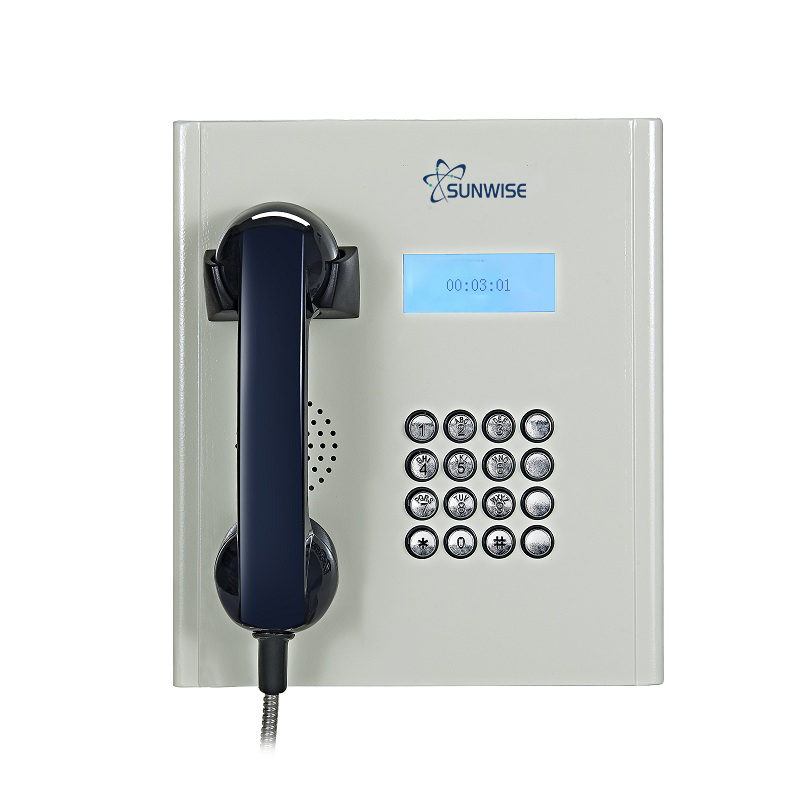

inmate telephone front view

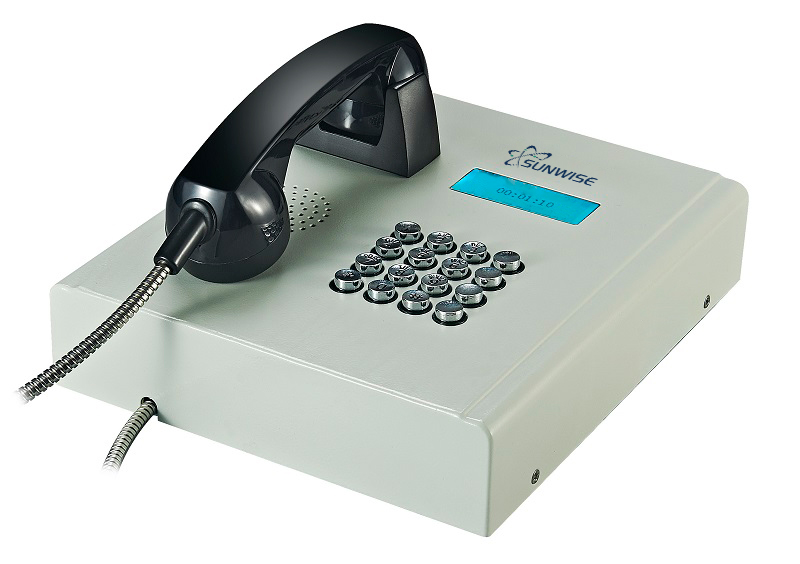

inmate telephone side view

Video

Email US

EMAIL: marketing@sunwisegloble.com

This Product Model: SWID-027LCD
