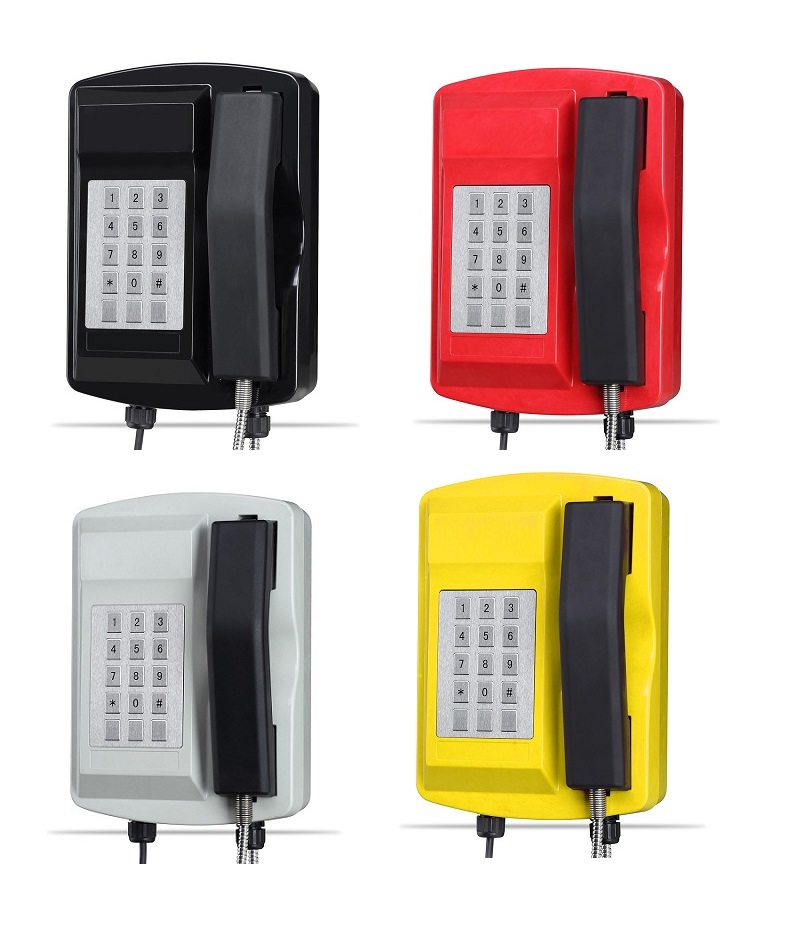

Moisture Proof Telephone SWOD-18
Main features :
1. Robust aluminium alloy die-cast SMC body. Vandal resistant and tamper-resistant hardware, simple installation.
2. Auto-dial, as soon as you pick up the hand set the phone will put through. Or one button optional
3. Weather resistant to IP66 standard, service temperature range from: -35 degree to +75 degree
4. Magnetic reed hook-switch
5. Telephone line powered. No external power or battery back up required.
6. Lightening protection to ITU-T recommendation K.21
7. Handset: made of special engineering plastic, high anti-knock resistance, Weatherproof, armoured cable optional,
8. Hearing Aid compatible receiver, Noise canceling microphone.
9. Handset integrity wiring to enable the telephone system to check if the telephone unit is still operational.
10. Selectable 7 minute time out, to release the line if the handset is left off hook.
11. Ingress Protection: GB4208-93 IP66 EMC: EN55022/EN55024/EN50121-3-2: 2006 FCC.

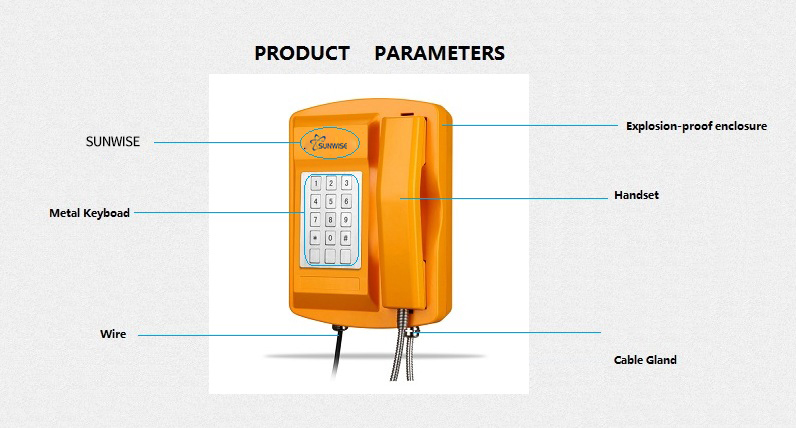

DESCRIPTION ITEM NO.
1. Robust SMC 2600 glass fibre reinforced polyester die-cast body, Vandal & tamper-resistant hardware, easy Installation.
2. Full keypad with memory, 3 button programmable telephone, support free dial.
3. temperature range from -40 degree to +70 degree.
4. Magnetic reed hook-switch.
5. Lightening protection to ITU-T recommendation K.21.
6.Heavy Duty handset with hearing Aid compatible(HAC) receiver, Noise canceling microphone.
7.Handset with industrial armored cord .
8. Stainless steel keypad keep waterproof and dusty proof.
9.Temperature range from -40 degree to +70 degree.
10.Support echo cancellation.
11.Remote software upgrade, configuration and monitoring.
12. Optional 7 minute time-limited call.( This functionupon buyer’s requirement).
13. Powder coated in UV stabilized polyester finish.

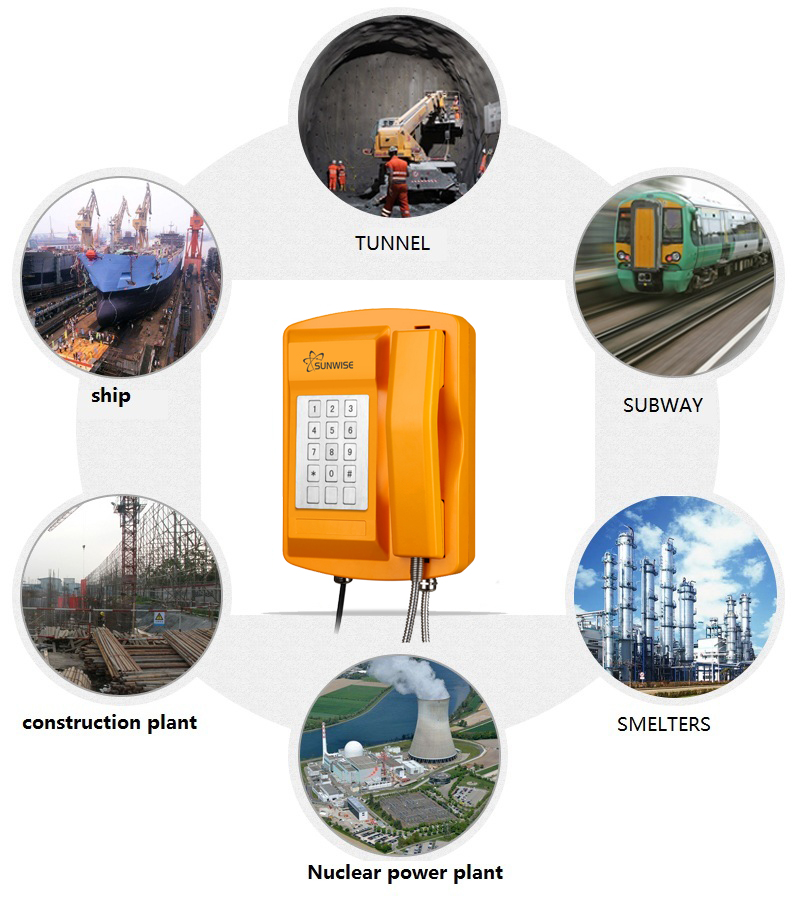

14. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.
The size

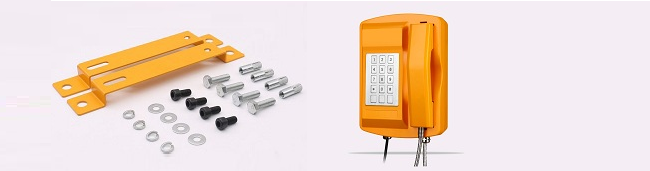

INSTALLATION
CERTIFICATION
RCM: AS/NZS CISPR 32 Australian communications:AS/CA S004
Australian Equipment-safety: AS/NZS 60950.1:2015
EMC: EN50121(Railway application-Electromagnetic Compatibility)
PACKNG
Unit size:290 *205*117mm N.W: 4KG
1pcs packing box size:332*210*125mm N.W: 4.79KG
6pcs in 1 outer Carton box: size: 670*352*315mm N.W: 30.5KG
