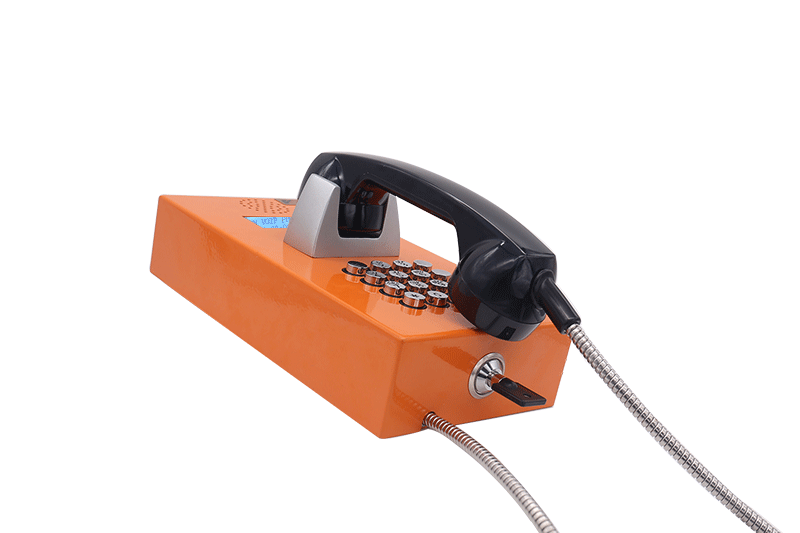

Prison Phone SWID-05 LS

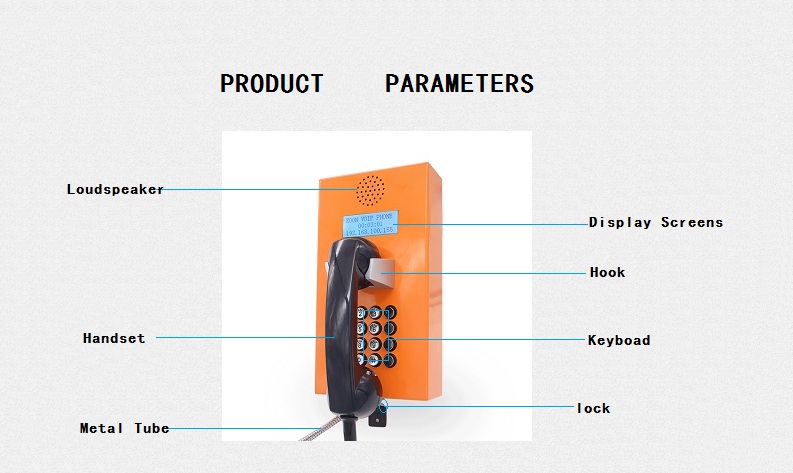

DESCRIPTION
1. Cold-roll steel body, vandal & tamper-resistant hardware, easy installation.
2. Waterproof rating IP55 dust proof.
3. Full keypad with memory, 10 button programmable telephone, support free dial.
4. Magnetic reed hook-switch, with LCD display and key lock, no visible screws.
5. Lightening protection to ITU-T recommendation K.21.
6. Heavy duty handset with hearing aid compatible receiver, noise canceling microphone.
7. Handset with industrial strong metal cord.
8. POE power supply or DC12V powered.
9. SUS keypad keep waterproof and dusty proof.
10. Temperature range from -40 degree to +70 degree.
11. Support echo cancellation, wall mounted type.
12. Remote software upgrade, configuration and monitoring.
13. Optional 7 minute time out to release the line if the handset is left off hook. Optional
14. Powder coated in UV stabilized polyester finish.
15. The housing covered with a layer of reflective label for easy identification at night. Optional
16. Application: Prison, bank, airport, school, metro, railway station, LRT, hotel, supermarket andpedestrian areas in cities etc
Features:
1. With auto-dial function ( also can set with four groups speed-dial number according to requirements)
2. Storage number can be modified freely.
3. With total function of normal phone
4. Vandal resistant and tamper-resistant hardware
5. Applicable for all the environment either unattended or attended
LCD Display
Caller ID
Date
Dialing number
Conversation time counting
Imput bank card number
Can add or Minus function according to buyer’s need
How to clear out number:
1. Open phone box, put the switch “1” to “ON” side on the PCB mainboard.
2. Connect telephone line and pick up the handset
3. Press the storage key (which have stored the number) twice.
4. Put the handset back on hook and put the switch “1” back to “1” side

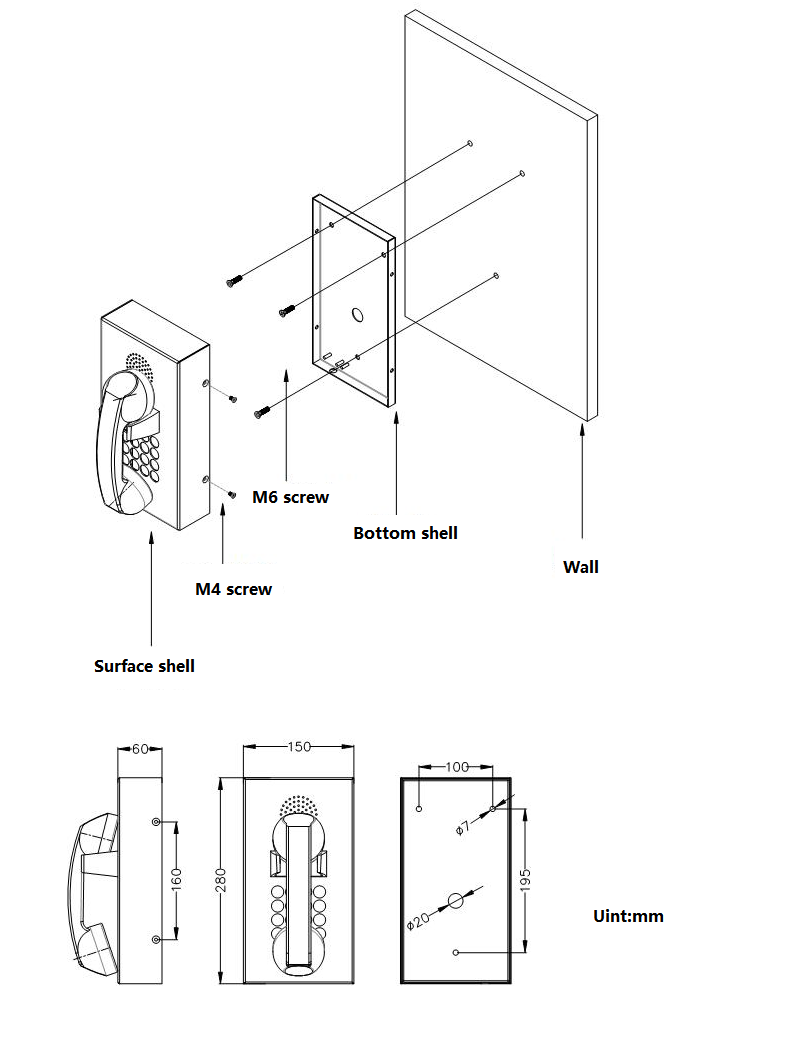

INSTALLATION SIZE
Main PCB
1.Well treated PCB used inside the phone.
2.Robust screw terminals used for the connection of ringer,handset,line in,hookswitch.
3.Selectable 7 minute time out,to release the line if the handset is left off hook.
4.All connectors be greased in production.
Handset
1.Kirk electro dynamic transducer for both handset transmitter and receiver.
2.Spring cable or armoured cable to attach the handset to the telephone main unit.
3.Stainless steel cable to connect exchange.
4.Inductive coupler fitted for hearing aid compatibility.
5.Handset integrity wiring to enable exchange to check if the phone is still operational.
VOIP OVER IP-SIP(Version)
Connection type:Rj45 Socket inside sealed enclosure
Power supply:External 5V dc
Call set-up Protocol:Session Initiation Protocol(SIP)
Configuration:DHCP or STATIC IP address provisioning
CERTIFICATION
Packaging specifications
Unit size:280*150*130mm Unit: N.W:2.37KG
1pcs packing box size: 320*190*190mm Unit N.W:2.37KG Unit G.W:2.9KG
6pcs in 1 outer Carton box: size: 510*370*390mm N.W:14.22KG G.W:18.44KG
