Robust Telephone

Model: SWOD-26A

Size: 274*255*163mm

Material:

Robust Telephone-waterproof IP66

Features

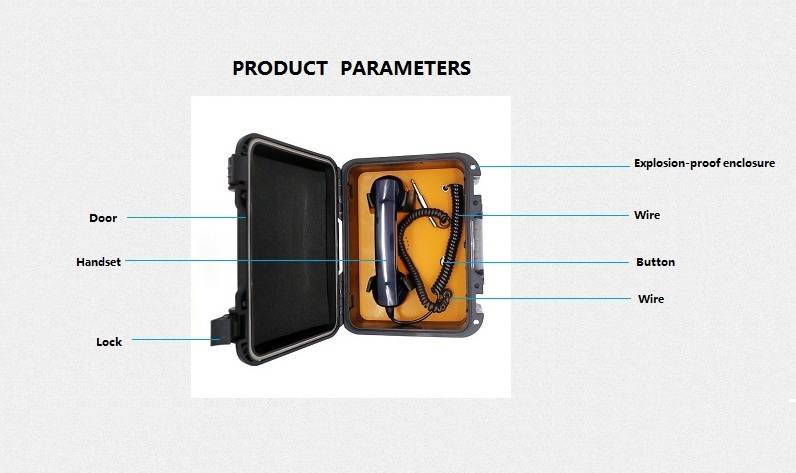

Robust Telephone view

Robust Telephone SWOD-26

The portable telephone use along the track (Direct telephone line).

The telephone like a portable mobile will be provided without keypad.

It is hot line phone. It come with a button to switch on and switch off the line.

It is weather protected IP66.

The call start when handset receiver is connected and after the operator press on the button of call.

The call stop when one or the other of the speaker hangs up again.

Easy operation:

open the door-->plug the connect plug into a proper telephone socket--> pick

the handset and press the call button--> speaking--> hang up--> close the door.

Robust Telephone

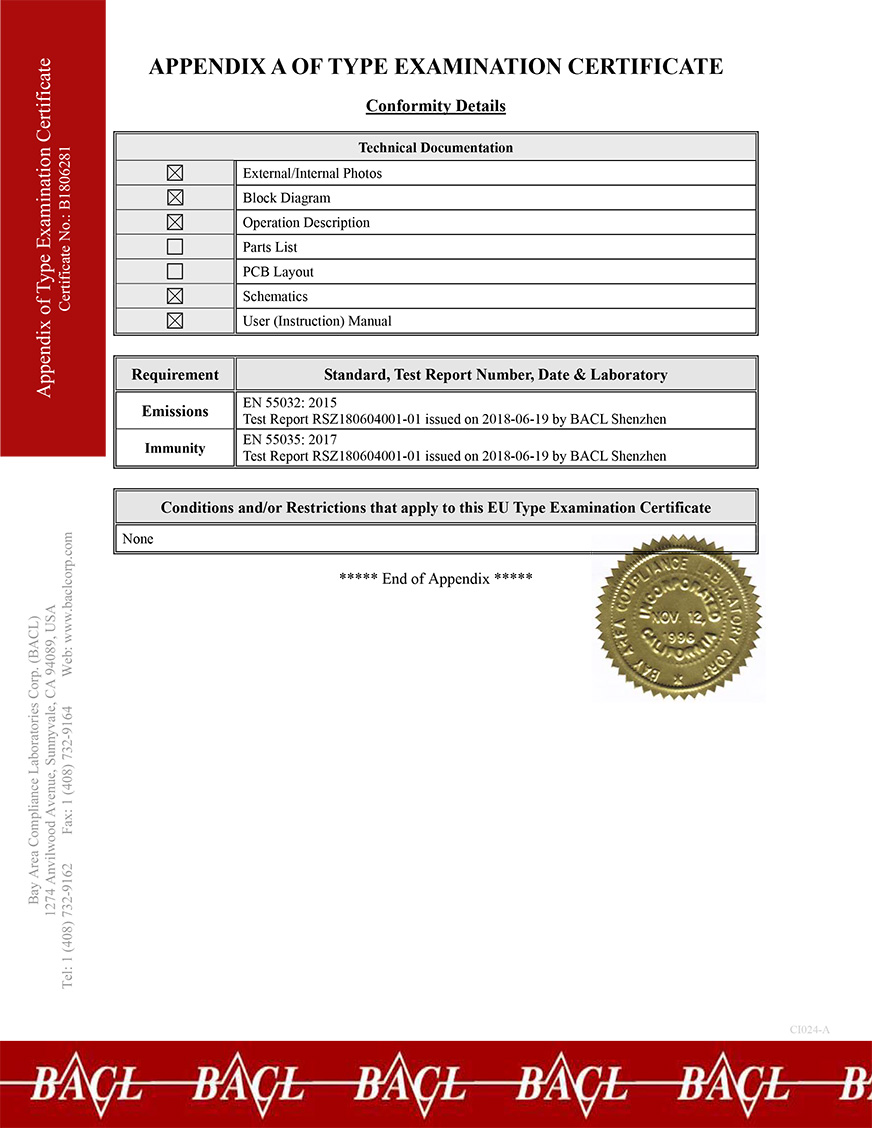

RCM: AS/NZS CISPR 32 Australian communications:AS/CA S004

Australian Equipment-safety: AS/NZS 60950.1:2015

EMC: EN50121(Railway application-Electromagnetic Compatibility)

uploads/image/20240318/20180718185514208.jpg

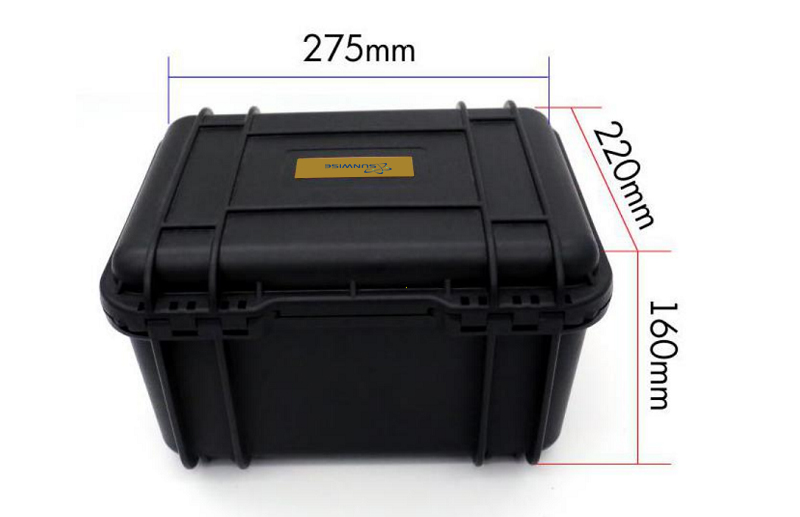

Unit size:274*255*163mm Unit: N.W:4KG

Specification

1. PSTN analogue telephone 2. DTMF dialing

3. MTBF:100000hours 4. MTTR: 2 hours

5. Connection: RJ11 screw terminal pair cable 6. Sound level of ringing:over 70dB(A).

7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM

8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.

9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected

10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits)

11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%

12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)

System

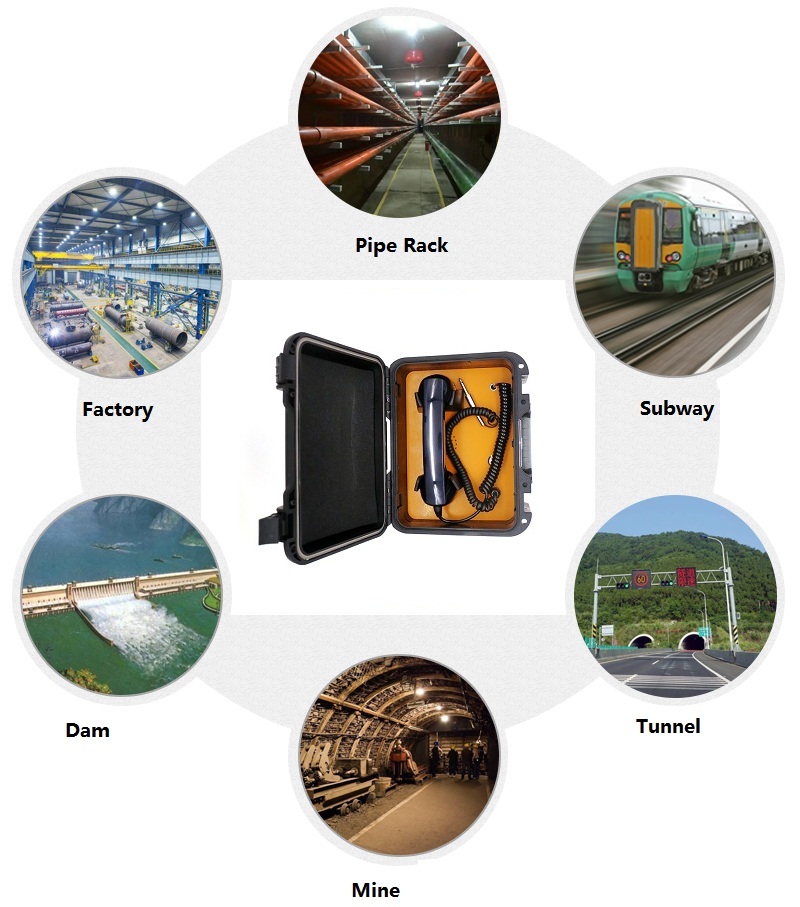

Application

Robust Telephone Application

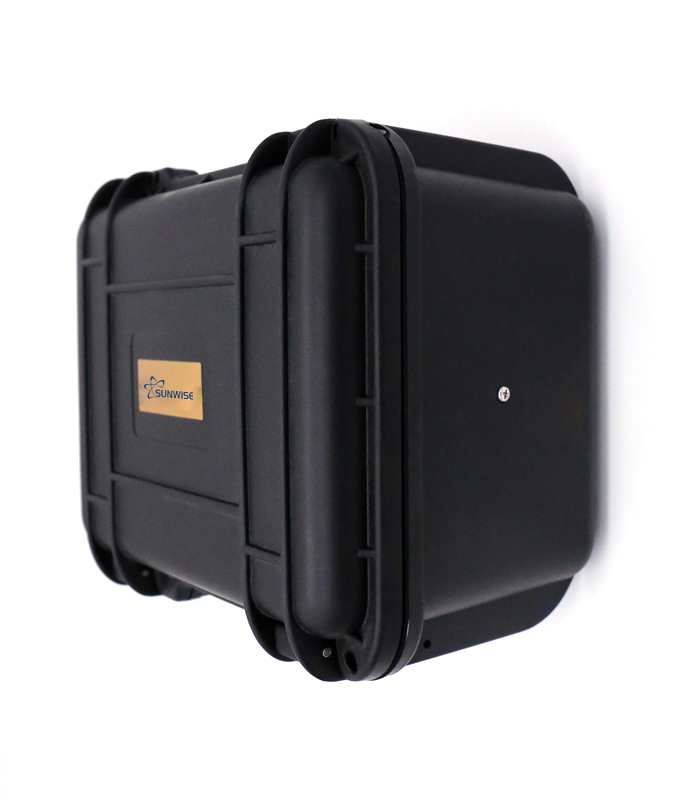

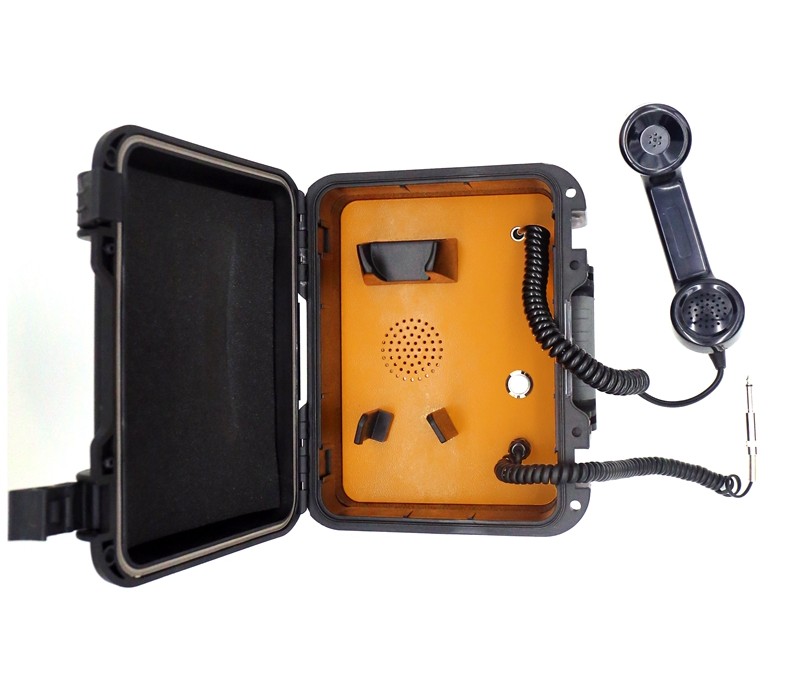

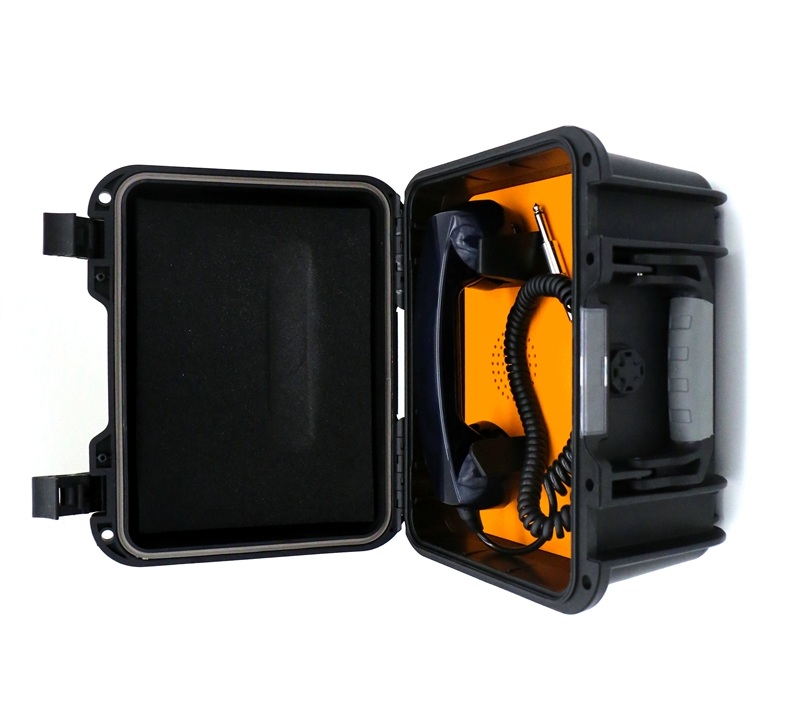

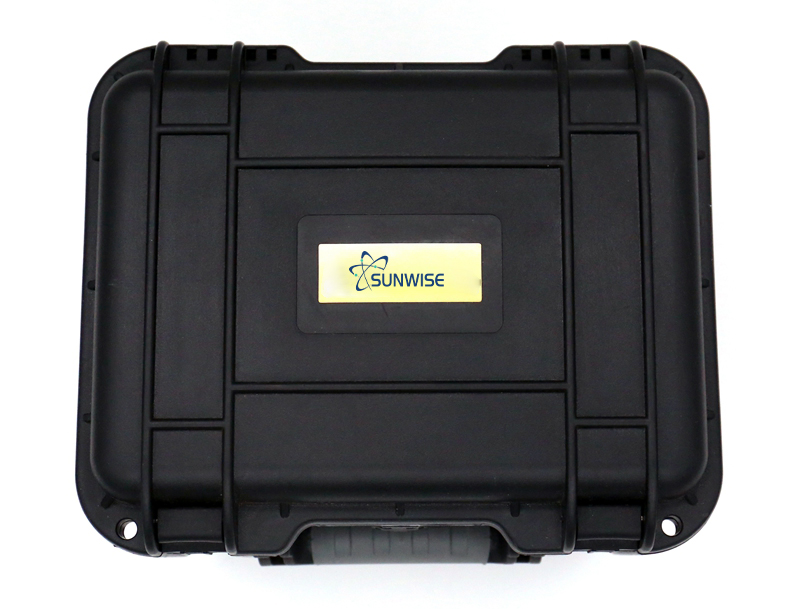

Detailed Pictures

Robust Telephone

Video

Email US

EMAIL: marketing@sunwisegloble.com

This Product Model: SWOD-26A
