SIP Video Phone SWIPT-800
Our 6 line Enterprice- class video telephone for conference
SWIPT-800 is a high-end business IP phone, which is suitable for users who need flexibility and advanced functions, so that they can easily cope with the busy and complex work needs in their work. The SWIPT-800's 7.2-inch main color display has 10 DSS keys. Used to set up BLF / fast dialing, multicast functions, etc. SWIPT-800 is also equipped with high-definition voice, built-in Bluetooth, WIFI links, EHS support, Gigabit dual-port PoE, and IP camera.

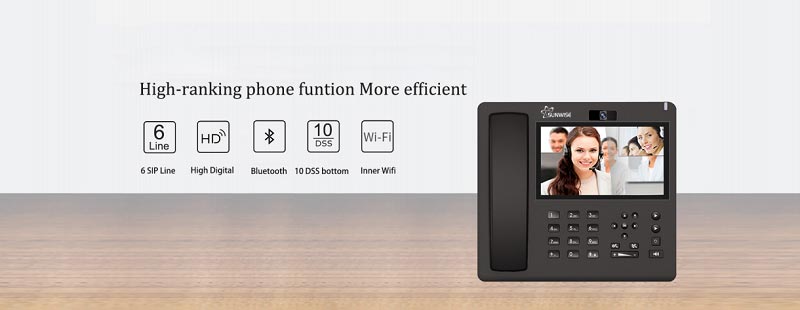

The VoIP Video Telephone Special Function
1.HD audio,handset and speakerphone with support for wide band audio.
2.6 Line keys with up to 4 SIP accounts,8MPK extension keys with dual-color LED with 2 Left/Right keys.
3.Dual LCD screens with digital BLF keys.
4.Enterprise-level protection including secure boot,dual firmware images, and encrypted data storage.
5.Integrated dual-band 802.11 a/b/g/n WiFi
6.Dual switched auto-sensing 10/100 Mbps Megabytes Ethernet ports with integrated PoE.
7.Swappable face plates to allow for easy logo customization
8.Integrated Bluetooth

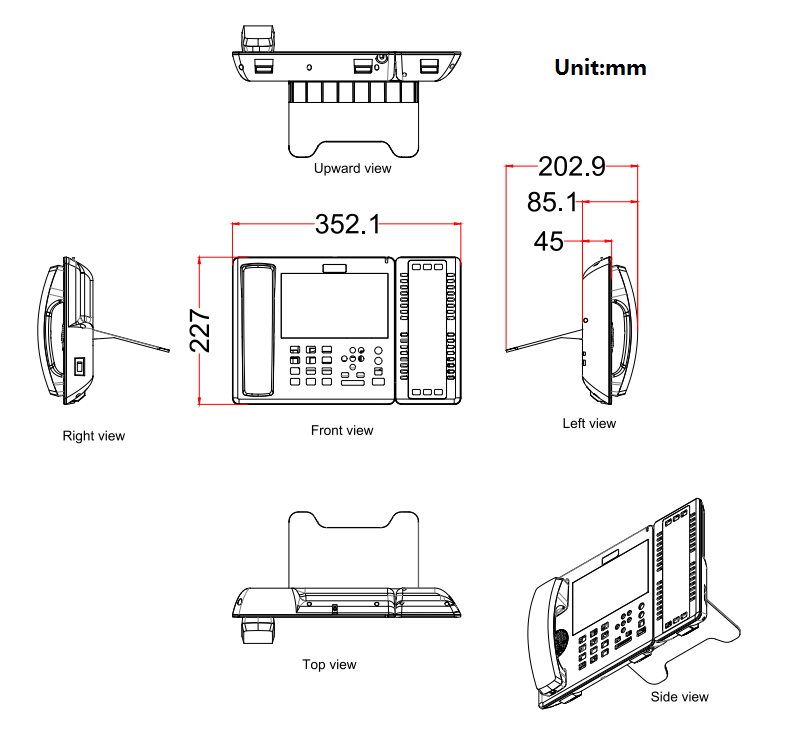

Video telephone for conference size
7.2-Inchs Colorful screen Two 3.5-Inchs DSS screen
The surface design is very elegant,with touhch screen and high resolution screen.
With the intelligent user interface it could be breakthrough surface and experiment.
Funtion Schedule
*6 SIP Lines tripartite conference.
*HD sound quality.(handset and speaker)
*7.2-inches colorful screen
*Two 3.5-inchs DSS colorful LCD.
*Equipment 106 DSS key.
*Megabytes Double Network Port,POE is optional function.
*Inner Bluetooth function.
*Connectible Wifi.(Wi-fi Dongle)
*Surport EHS earphone.
*H.264 Video Decoding for Video telephone.
*Surport Mainstream IP PBX/softswitch/IMS Platform
*3cx,Asterisk,Broadsoft,Elastix,Avaya.

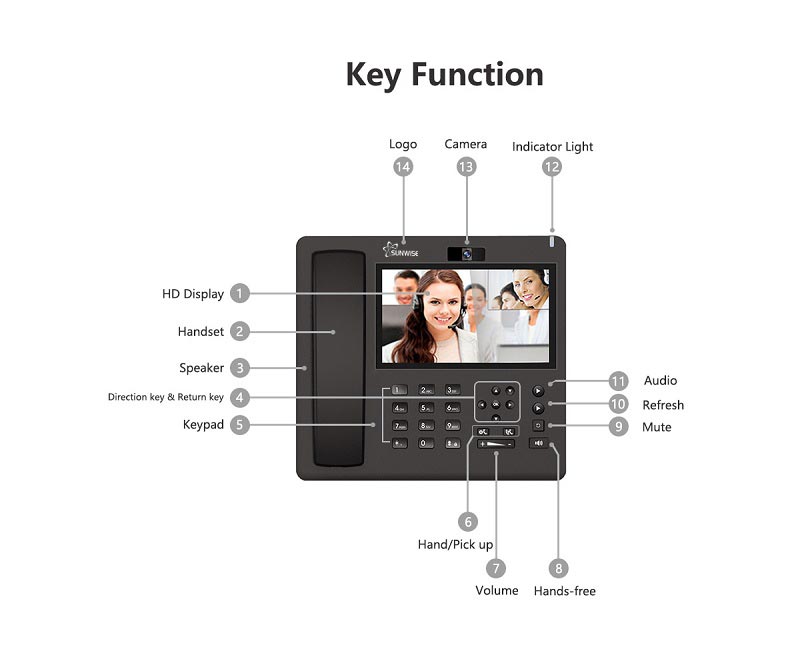

The key function abot the cenference video telephone
1.HD Display: HD display. Clear images and support multi-window multi-person video conferencing.
2.Handset: Magnetic handle, hang up and the phone hangs up.
3.Speaker: Speaker, power up to 8w.
4.Direction key and return key: functional button
5.Keypad: available for dialing and text input
6.Hand/Pick up
7.Volume: used for volume adjustment
8.Hands-free
9.Mute: Main menu
10.Refresh: Used for data refresh.
11.Audio
12.Indicator light
13.Camera:
PACKING
Unit size: 230*167*85mm Unit: N.W: 0.65KG
1pcs packing box size: 240*177 *95mm N.W: 0.65KG G.W: 0.93KG
12pcs in 1 outer Carton box: size: 480*354*175mm N.W: 8.4KG G.W: 9.6
