The SWID-005 VOIP
VoIP SIP2.0 telephone DTMF dialing Audio Codes:G.711, G.722, G.729
MTBF:100000hours MTTR: 2 hours Network:10/100 BaseTX Ethernet, RJ45
Free dial (maximum length of each number is 16 digits) connectors, Cat5e or better
Communication: Full duplex 2-way hands-free IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP,
communication DHCP, SIP
Call Control Signaling:VOIP SIP Info(DTMF), RFC LAN Protocols:Power over Ethernet(PoE,802.3af),
2833(DTMF) WLAN(IEEE 802.3af), Network Access
Power:Power over Ethernet, IEEE802.3af, Class 0 Control(IEEE 802.1x),STP(IEEE 802.1d),
Local power, 12VDC,Idle 2W, Max 10W RSTP(IEEE 802.1d-2004)
Auxiliary Contacts:1 Aux Output, dry contact Programming:Non-volatile flash memory
Contact Ratings. Load: Resistive load programming and configuration through Web GUI
Rated load:0.3 A at 125 VAC; 1 A at 30 VDC Management and Operation:DHCP and static IP,
Rated carry current:1A remote automatic software upgrade, centralized
Max.switching voltage:125 VAC,60VDC monitoring, status LED
Max.switching current:1A Echo cancellation code:G.167/G.168

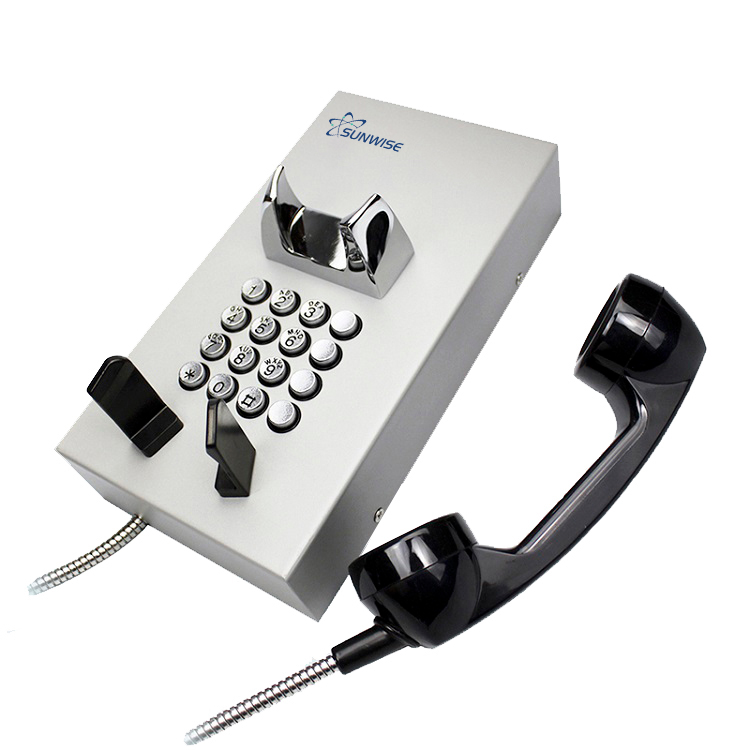

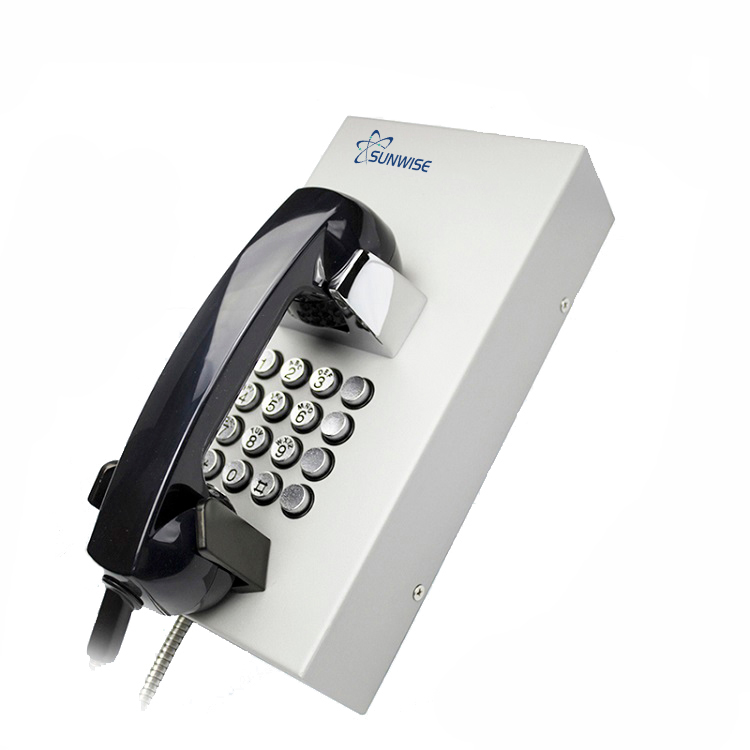

The SWID-005 Analogue
1.PSTN analogue telephone
2. DTMF dialing
3.MTBF:100000hours
4. MTTR: 2 hours
5. Connection: RJ11 screw terminal pair cable
6. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V. 7. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)
8. Sound level of ringing:over 70dB(A).
9. Standard frequency:low frequency group:697. 770.852. 941Hz, high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%
10. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm. maximum distance: 7KM
11. Super strong function is available for dialing 4 groups of numbers stored in the memory (maximum length of each number is 16 digits)
12. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request) with stainless steel cable protected
