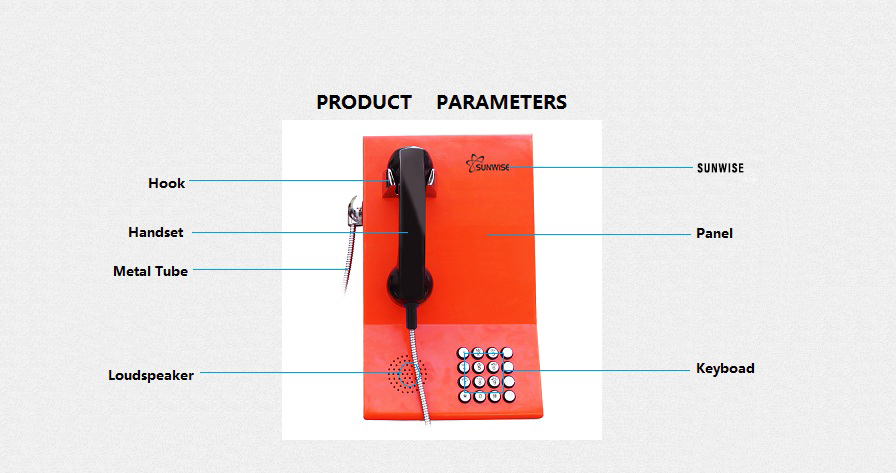

Bank Emergency Telephone SWID-023
Telephone Features:
1. With auto-dial function ( also can set with four groups speed-dial number according to requirements)
2. Storage number can be modified freely.
3. With total function of normal phone
4. Vandal resistant and tamper-resistant hardware
5. Applicable for all the environment either unattended or attended
How to store number:
1. Open phone box, put the switch “1” to “ON” side on the PCB mainboard.
2. Connect telephone line and pick up the handset
3. Input the number you want to store
4. Press any storage keys S1~S4 once (press S1 is ok for auto-dial function)
5. Put the handset back on hook and put the switch “1” back to “1” side.
Main Product features：
1.Cold rolled steel bodt,solid and temperature bearable.
2.High durability,oil,acid,alkali resistance,conform to the standards of GJB-773 and UL1332 requirements.
3.Highly integrated mainboard,using the most advanced industry-specific microcontroller made in ATMEL company.
4.The box with earthing device is completely isolated with internal electric ciruit,and has certain electromagnetic shielding effect.
5.Conversation with clear loud voice,no feedback screaming.
6.Support hotline of exchange system.
7.Support the function of exterior line automatic lift.
8.Support conversation time limited.
9.Strong,thick and beautiful body with embed wall design.

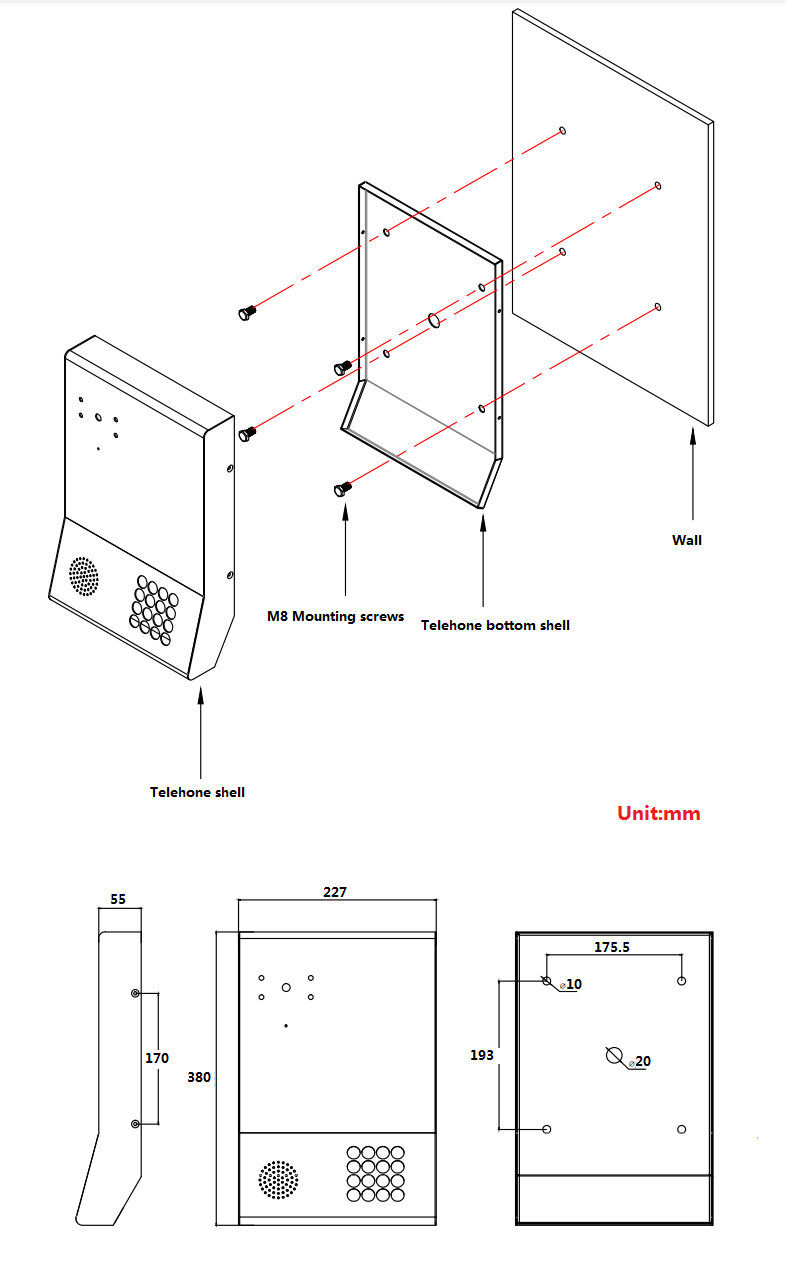

INSTALLATION SIZE
CERTIFICATION
EMC:EN50121(Railway application-Electromafnetic Compatibility)
EN55022:emissions
En55024:immunity
FCC
ITU-T Recommendations K21
Packaging Specifications:
Machine size:380 *230 *55( mm )
Carton size:439*277 *191( mm )
Packaging material: pearl cotton, carton
Gross weight:4.3KG
Net weight:3.6KG
Main PCB
1.Well treated PCB used inside the phone.
2.Robust screw terminals used for the connection of ringer,handset,line in,hookswitch.
3.Selectable 7 minute time out,to release the line if the handset is left off hook.
4.All connectors be greased in production.
Handset
1.Kirk electro dynamic transducer for both handset transmitter and receiver.
2.Spring cable or armoured cable to attach the handset to the telephone main unit.
3.Stainless steel cable to connect exchange.
4.Inductive coupler fitted for hearing aid compatibility.
5.Handset integrity wiring to enable exchange to check if the phone is still operational.
VOIP OVER IP-SIP(Version)
Connection type:Rj45 Socket inside sealed enclosure
Power supply:External 5V dc
Call set-up Protocol:Session Initiation Protocol(SIP)
Configuration:DHCP or STATIC IP address provisioning
