Highway Emergency Telephone SWID-09A-1T2S
Main Product Features
1.Main body with whole stainless steel body,solid and temperature bearable.
2.Heavy duty Vandal resistant buttons.
3.Resume lightning proof protection automatically standard to ITU-T K21.
4.Waterproof grade about IP65.
5.The metal shell is provided with grounding connection device and is absolitely insulated with inner circuit and electric,then has the offect of electromagnetism shield.
6.Support hotline call, can realize ring off automatically if the other side close.
7.The design is super thin and smart.Embed style and hanging style can be chisen.
8.Totally adopt SMTC craftwork keep very good quality.
9.Every call is limited(set by five minutes),auto ring off if time exceeded.(Option)
10.Colours:RED+Stainless steel colour,if the qty over 100pcs can be to custometr specification.
11.Trouble alarm send by SMS/GPRS message.

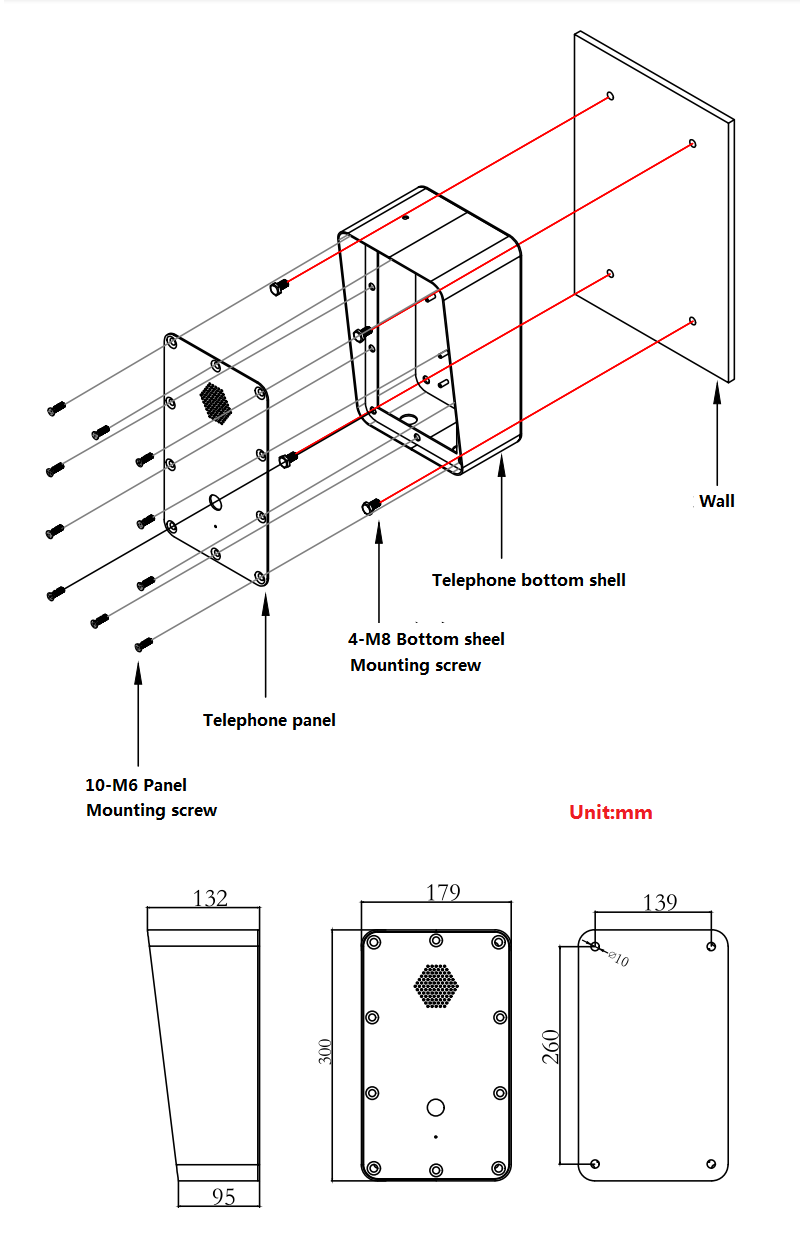

INSTALLATION SIZE
CERTIFICATION
Packing Detail:
Unit size:300*180*135MM, N.W:3.5KG
1pcs in each inner CTN box,size:439*277*191mm G.W:4.2KG
4pcs in outer CTN box,size:566*445*420mm G.W:18.1KG
Main PCB
1.Well treated PCB used inside the phone.
2.Robust screw terminals used for the connection of ringer,handset,line in,hookswitch.
3.Selectable 7 minute time out,to release the line if the handset is left off hook.
4.All connectors be greased in production.
Handset
1.Kirk electro dynamic transducer for both handset transmitter and receiver.
2.Spring cable or armoured cable to attach the handset to the teleohone main unit.
3.Stainless steel cable to connect exchange.
4.Inductive coupler fitted for hearing aid compatibility.
5.Handset integrity wiring to enable exchange to check if the phone is still operatitional.
VoIP OVER IP-SIP(Version)
Connection type:Rj45 Socket inside sealed enclosure
Power supply:External 5V dc
Call set-up Protocol:Session Initiation Protocol(SIP)
Configuration:DHCP or STATIC IP address provisioning
GSM Version
GSM 2G/3G Solar Powered with built-in rechargeable battery
1.Network Interface:GSM Frequency:850/900/1800/1900Mhz,2G,3G.WCDMA.
2.Ringing:Through internal Speaker/ringer.
3.Power Supply:Re-chargeable Battery powered:9V/14Ah.
4.Solar back-up:12V/30W.
5.Time out:selectable 0-20 minutes.
6.Built-in battery standby:21 days,can improve to 42 days.
7.Built-in battery talking time:56 hours,can improve to 100 hours.
Connection Cable
Stainless steel connection cable to exchange
Well treated keep waterproof
