Explosion Proof Telephone KNEx7 IP

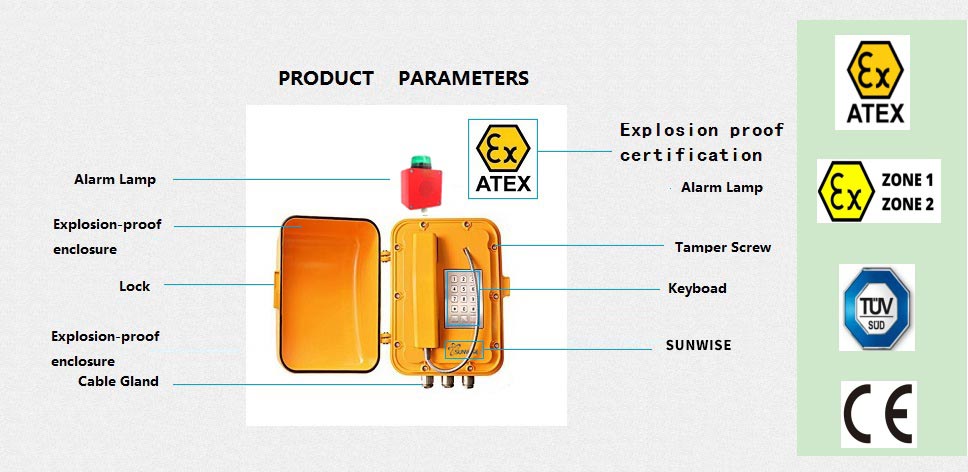

DESCRIPTION
1.Robust aluminium alloy die-cast body, Vandal & tamper-resistant hardware.
2. Waterproof rating IP66 dust proof.
3. Full keypad with memory, 3 button programmable telephone.
4. Magnetic reed hook-switch.
5. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
6. Handset with industrial strong curly cord .
7. Stainless Steel keypad keep waterproof and dusty proof.
8. Built-in 8ohm 0.5W with flash light.
9. Door cover: orient automatically and good self - closing, convenient for use.
10. Temperature range from -20 degree to +55 degree.
11. Support echo cancellation.
12. Powder coated in UV stabilized polyester finish.
13. Application: Hazardous dust and gas atmospheres, petrochemical industry,Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.

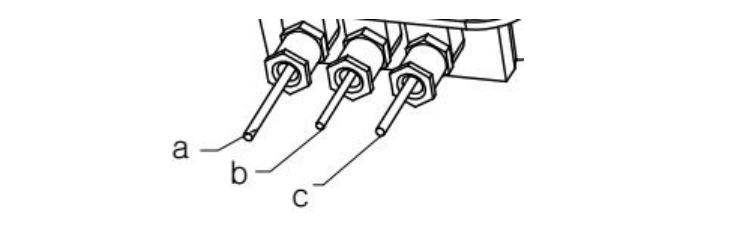

INTERFACE CONNECTION SCHEMATIC DIAGRAM
b : Network cable above cat 5
c : Headset and D20 ringtone 8ohm 0.5W and LED DC5V/0.75W and explosion proof horn connection cable(option:8-core wire)

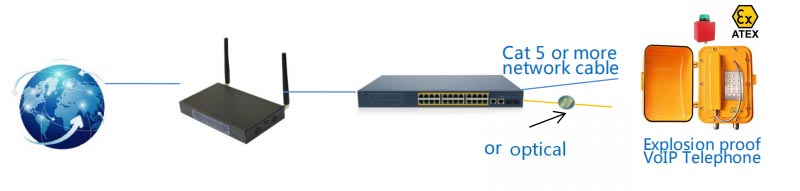

NETWORK CONNECTION
Connect the IP machine to the company's IP telephony network system. Before connecting to the network, check whether the network system is working properly.Direct network connection - In this way, you need at least one Ethernet port in your work place.Connect the LAN port to the Ethernet port of your workspace using the Ethernet cable on the back of the phone.

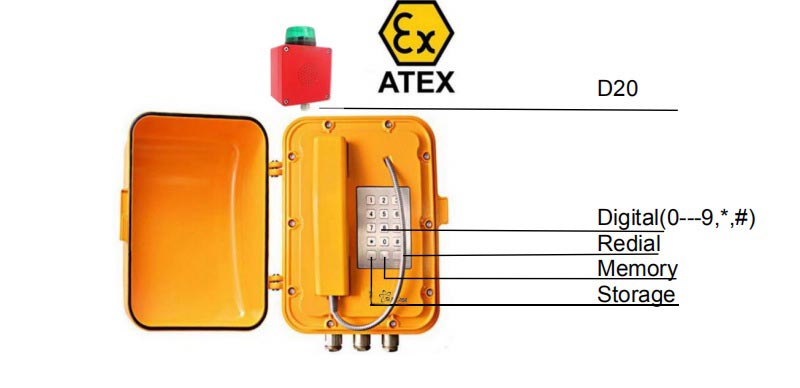

USER PROGRAMMING
pick up the Handset, press the keyboard storage key+address key(digital 0 --- 9)+phone number+storage key, and then hang up.

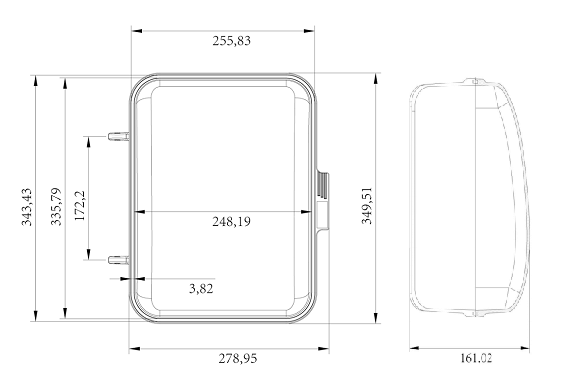

SIZE AND INSTALLATION
