Hazardous Area Telephone KNEx6

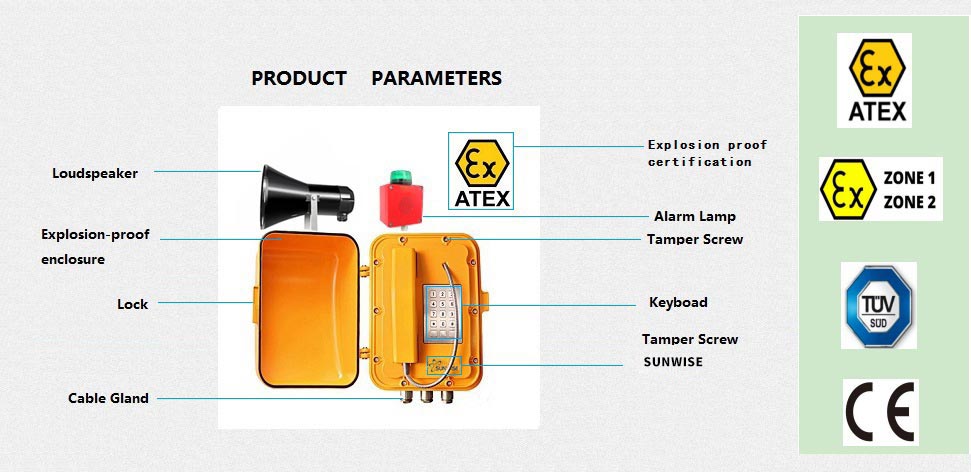

DESCRIPTION
1. Robust aluminium alloy die-cast body, Vandal & tamper-resistant hardware
2. Waterproof rating IP66 dust proof.
3. Full keypad with memory, dialling 10 groups of numbers stored in the memory
4. Magnetic reed hook-switch.
5. Heavy Duty handset with hearing Aid compatible receiver, Noise cancelingmicrophone.
6. Handset with industrial strong curly cord .
7. Stainless Steel keypad keep waterproof and dusty proof.
8. Built-in 8ohm 0.5W with flash light, Support Explosion proof horn 8ohm 5-30W connection.
9. Door cover: orient automatically and good self - closing, convenient for use.
10. Temperature range from -20 degree to +55 degree.
11. Powder coated in UV stabilized polyester finish.
12. Application: Hazardous dust and gas atmospheres, petrochemical industry,Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.
INTERFACE CONNECTION SCHEMATIC DIAGRAM
a : AC power cord (option : 3-core wire)
b : Telephone Line
c: Headset and D20 ringtone 8Ω 0.5W and LED DC5V/0.75W and explosion proof horn connection cable(option:8-core wire)

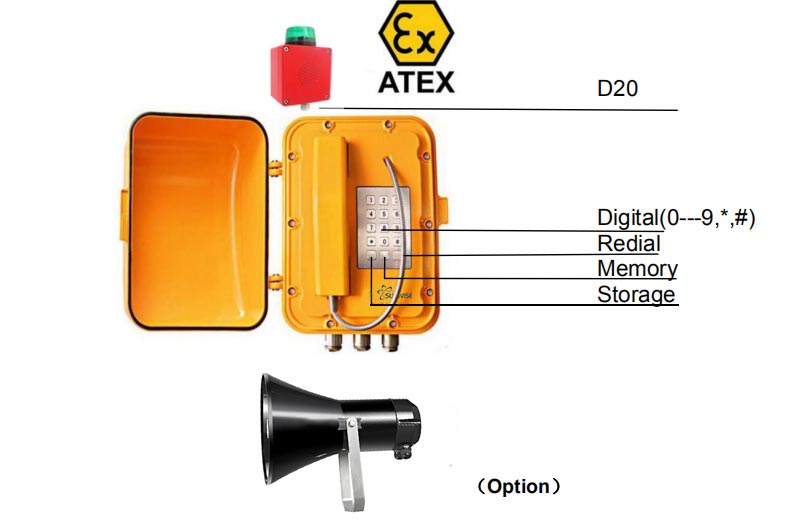

USER PROGRAMMING
pick up the Handset, press the keyboard storage key+address key(digital 0 --- 9)+phone number+storage key, and then hang up.
SIZE AND INSTALLATION
