Intrinsically Safe Telephone

Model: KNEx8 VoIP

Size: 349.5X279X161mm

Material: SMC(Sheet Molding Compound)

Intrinsically Safe Telephone-VoIP | SUNWISE

Features
Specification
System
Application
Detailed Pictures
Video
Email US

Features

uploads/image/20240325/Explosion-proof-telephones-description-7.jpg

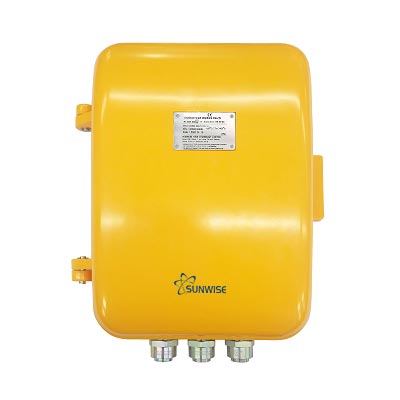

Intrinsically Safe Telephone KNEx8 VoIP

DESCRIPTION ITEM

1.Robust aluminium alloy die-cast body, Vandal & tamper-resistanthardware.

2.Waterproof rating IP66 dust proof.

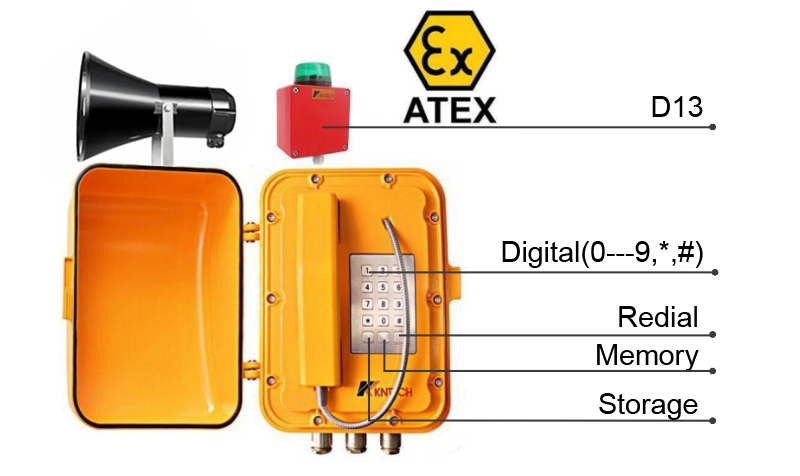

3.Full keypad with memory, dialling 10 groups of numbers stored in the memory.

4.Magnetic reed hook-switch.

5.Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.

6.Handset with industrial strong curly cord .

7.Stainless Steel keypad keep waterproof and dusty proof.

8.With externalsafety ring indicator D20 with 80 0.5W and LED 5Vd.c./0.75W: with built-in amplifiermodule support external explosion proof horn 8 Ohm 30W.

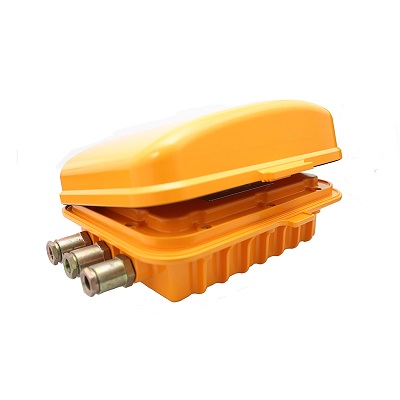

9.Door cover: orient automatically and good self - closing, convenient for use.

10.Temperature range from -20 degree to +55 degree.

11.Support echo cancellation.

12.Powder coated in UV stabilized polyester finish.

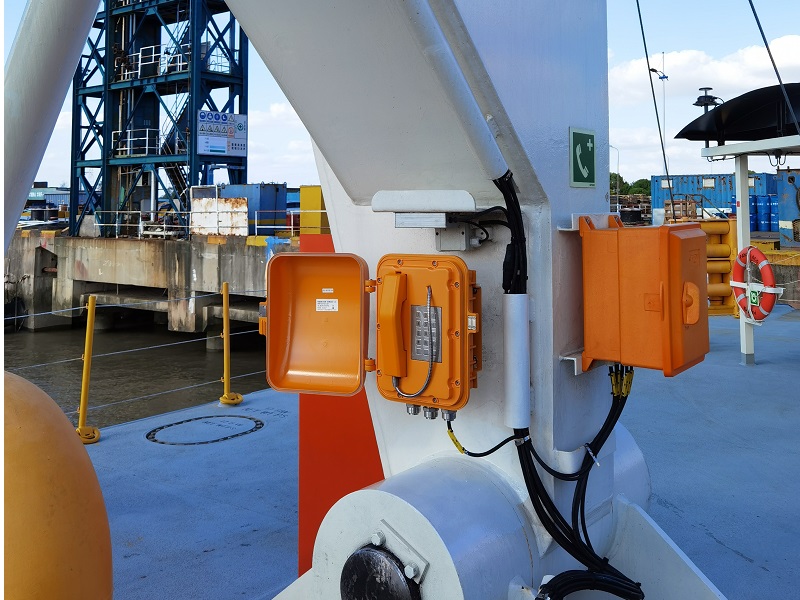

13.Application: Hazardousdust andgas atmospheres,petrochemical industry,Tunnel,metro, railway, LRT,speedway, marine, ship,offshore, mine, power plant, bridge etc.

INTERFACE CONNECTION SCHEMATIC DIAGRAM

a : AC power cord (option : 3-core wire)

b : Network cable above cat 5

c : Headset and D20 ringtone and LED DC5V/0.75W and explosion proof horn connection cable(option:8-core wire)

NETWORK CONNECTION

Connect the IP machine to the company's IP telephony network system. Before connecting to the network, check whether the network system is working properly.Direct network connection - In this way, you need at least one Ethernet port in your work place.Connect the LAN port to the Ethernet port of your workspace using the Ethernet cable on the back of the phone.
